Using External Raise and Lower Switches

CAUTION:

RXA0097037
RXA0097037-UN-19MAR09

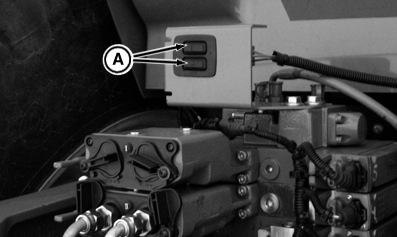

Valve Stack Mounted Switches (If Equipped)

RXA0068228
RXA0068228-UN-05AUG08

Fender Mounted Switches (If Equipped)

A - External Raise/Lower Switches

To prevent injury or damage caused by tractor movement, be sure transmission is in PARK position before using external raise and lower switches. Stay clear of interference points when using external raise and lower switches.

When external switches (A) are pressed hitch moves slowly, but slowly increases speed the longer hitch switch is held down.

Press and hold external switches (A) to raise or lower hitch. Hitch moves at slow speed when using external switches.

NOTE: Hitch command lever cannot be used simultaneously with external raise/lower switch.
