CommandCenter™ Left Region

Left Region Boxes and their meanings are listed below.

RXA0107361-UN-14MAY10

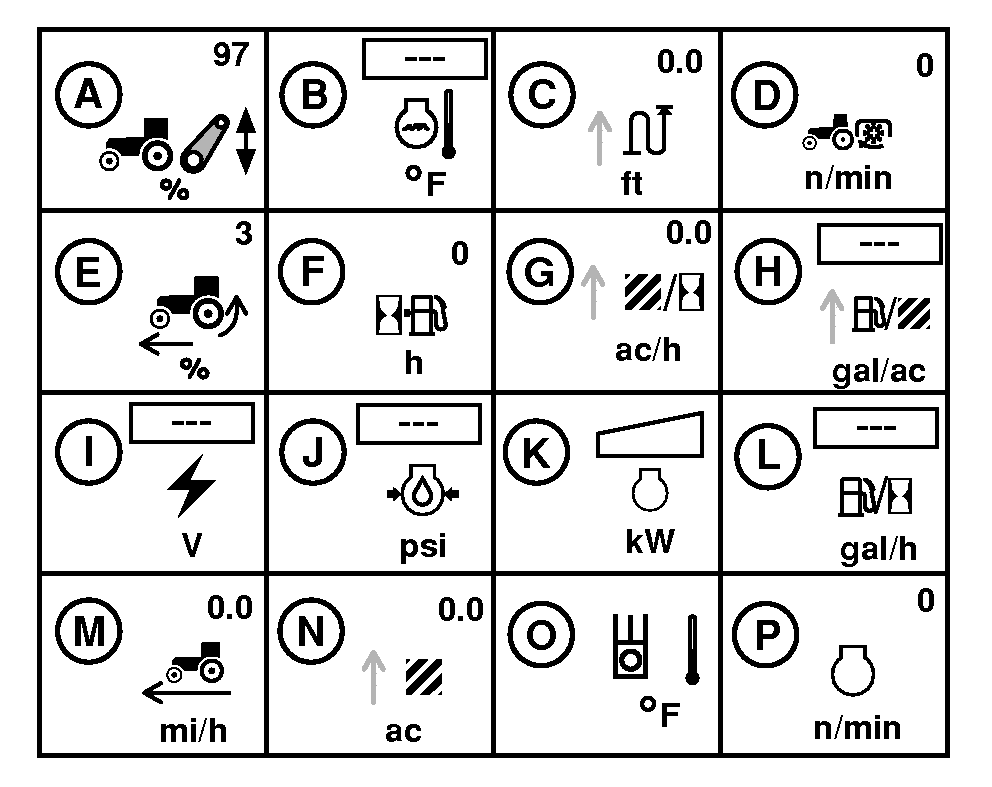

Listing Of CommandCenter™ Left Region Boxes

A — Rear Hitch Position - Displays current rear hitch position.

B — Engine Coolant Temp - Engine coolant Temperature in °C or °F.

C — Distance Counter- Accumulated distance the tractor has traveled displayed in meters or feet.

D — Rear PTO Speed - Displays rear PTO speed in rpm.

E — % Slip - (Requires Radar) Displays current wheel slippage as a percent of ground speed compared to the true ground speed.

F — Fuel Remaining - Estimated time until fuel tank is empty.

G — Area Per Hour - Area covered per hour. A number based on current implement width and speed traveled over time.

H — Fuel Consumption Per Area - The amount of fuel used is accumulated over time based on the last area counter reset.

I — System Volts - Supply system voltage.

J — Engine Oil Pressure - Engine oil pressure in kPa or psi.

Set engine Speed in maximum rpm.

K — Power Display - Engine power using a bar graph display.

L — Fuel Consumption Per Hour - Displays Liters (Gallons) consumed per hour.

M — Wheel (Ground) Speed - Calibrated ground speed as measured at the axle.

N — Total Area Covered - Total area covered displayed in hectares or acres.

O — Hydraulic Temperature - Hydraulic oil Temperature.

P — Engine RPM - Engine speed in revolutions per minute.
