Configuring Home Page

1. Select Menu button.


   RXA0110781-UN-09SEP10

   CommandARM Controls Menu Button→Layout Manager Icon


   RXA0106103-UN-20AUG10

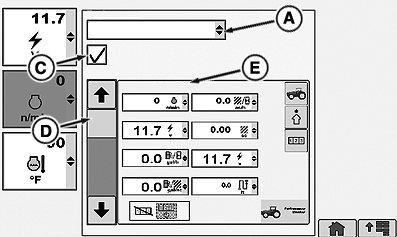

   Layout Manager—Selected Home Page

   A - Region Drop Down Box

   B - Page Name

   C - Include In Home Page Cycle Check Box

   D - Drop Down Box

---




2. Select Layout Manager

3. Layout Manager will open in the home page that was last used.

4. Select Region drop down box (A) to display options which include three home page options and 10 softkeys options.

   ↑	Home Page 1
   	Home Page 2
   	Home Page 3
   	Softkey A
   	Softkey B
   	Softkey C
   	Softkey D
   	Softkey E
   	Softkey F
   	Softkey G
   	Softkey H
   	Softkey I
   ↓	Softkey J

5. Place check in Home Page Cycle check Box (C) to have desired page displayed.

6. To view home pages after they are included in the home page cycle, on CommandARM™ select Home button displaying home page 1. Selecting Home button repeatedly displays consecutive home pages, 1, 2, or 3.

7. Open drop down box (D) to select pages or softkeys available for your tractor configuration.

   NOTE: Page Name (B) is printed across the top of page. Not all pages are identified with a specific page name.

8. To remove page from Layout Manager, remove check from check box (C). Check box is deactivated and page is no longer displayed in Layout Manager.

9. The 10 softkeys can also be programmed with the softkey options available to each. The selected softkey would then appear on the selected home page.

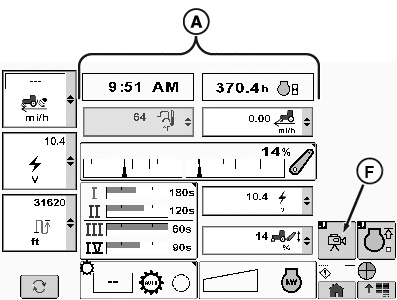

The default home page can be configured to monitor a number of ongoing tractor functions (A) normally monitored in the left region.

RXA0110781-UN-09SEP10

CommandARM Controls Menu Button→Layout Manager Icon

RXA0107757-UN-16SEP10

Default Home Page

RXA0110932-UN-16SEP10

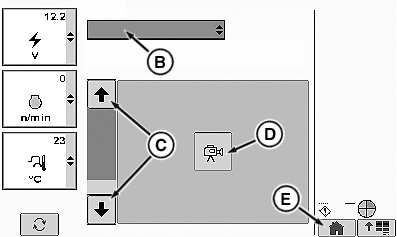

Adding Video Softkey

A - Tractor Functions

B - Region Drop Down Box

C - Arrow Up/Down

D - Softkey (Video)

E - Home

F - Softkey (Video)

NOTE: Softkey layouts are only visible on home pages that support reconfigurable softkeys.

To add configurable softkey to home page:

1. Select Main Menu.

2. Select Layout Manager.

3. Select Region drop down box (B).

4. Select desired softkey A though J (softkey E in this example).

5. Using Up/Down arrows (C) scroll to desired configurable softkey (D).

6. Select home softkey (E) at the bottom of right region.

7. Selected softkey (F) is then added to right region of home page.
