Setting Service Interval

RXA0098156
RXA0098156-UN-07NOV08

CommandARM™ Menu Button

RXA0106134
RXA0106134-UN-15JUL10

Performance Monitor → Performance Monitor Settings

RXA0106064
RXA0106064-UN-20AUG10

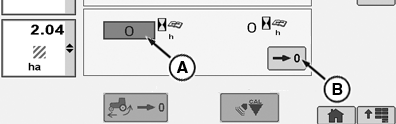

Performance Monitor Settings Page

RXA0106066
RXA0106066-UN-15JUL10

Reset Hours since Service Page

A - Service Alarm Interval Box

B - Reset Hours Since Service Box

C - Accept

D - Cancel

Service Interval: Alarm interval is adjustable between 0 and 1000 hours, in 10-hour increments. When hours of operation reaches setting, service alarm will sound with a corresponding message appearing on CommandCenter.

After service is performed, Hours-Since-Service display should be reset to zero.

  1. Select Menu button.

  2. Select Performance Monitor .

  3. Select Performance Monitor Settings softkey.

  4. At Performance Monitor page go to Service Alarm Interval box (A) and select it.

  5. Adjust service interval1.

  6. Make selection when desired entry is displayed.

    NOTE: Reset Hours Since Service button must be held for 3 seconds before hours will zero.

  7. Go to Reset Hours Since Service Box (B) and select Time Since Last Reset button to reset time.

CommandARM is a trademark of Deere & Company
1 If Using thumb wheel, rotate thumb wheel forward to increase or rearward to decrease hour setting displayed.

OURX935,000001E-19-20100921
