Using Performance Monitor

RXA0110780-UN-09SEP10

Performance Monitor →Performance Monitor Main→Advanced Settings

RXA0106766-UN-02AUG10

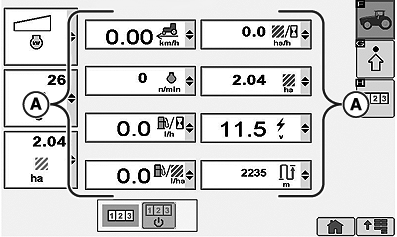

Performance Monitor Main Page

RXA0106767-UN-09MAR10

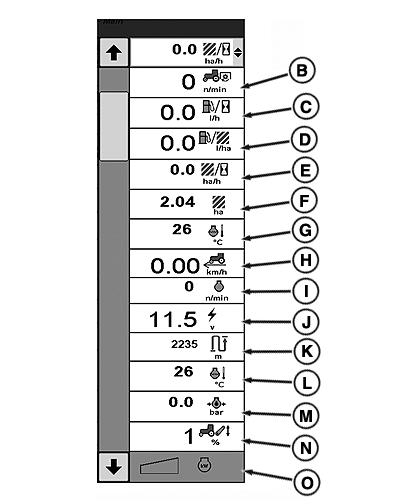

Performance Monitor Settings Options

A - Performance Monitor

B - PTO Speed

C - Fuel Consumption Per Hour

D - Fuel Consumption Per Area

E - Area Covered Per Hour

F - Total Area Covered

G - Engine Coolant Temperature

H - Set Speed (IVT ™/AutoPowr ™ Only)

I - Engine RPM

J - System Voltage

K - Distance Covered

L - Hydraulic Temperature

M - Engine Oil Pressure

N - Hitch Position

O - Engine Power

1. Select Menu button.

2. Select Performance Monitor.

3. Select Performance Monitor Main softkey.

4. When Performance Monitor Main page appears, 8 options are displayed (A). Current settings can be monitored at this time.

5. Selecting the drop down box in any of the 8 displayed options allows operator to select any of the remaining performance monitor options.
