Tow Mode

RXA0106115-UN-29JAN10

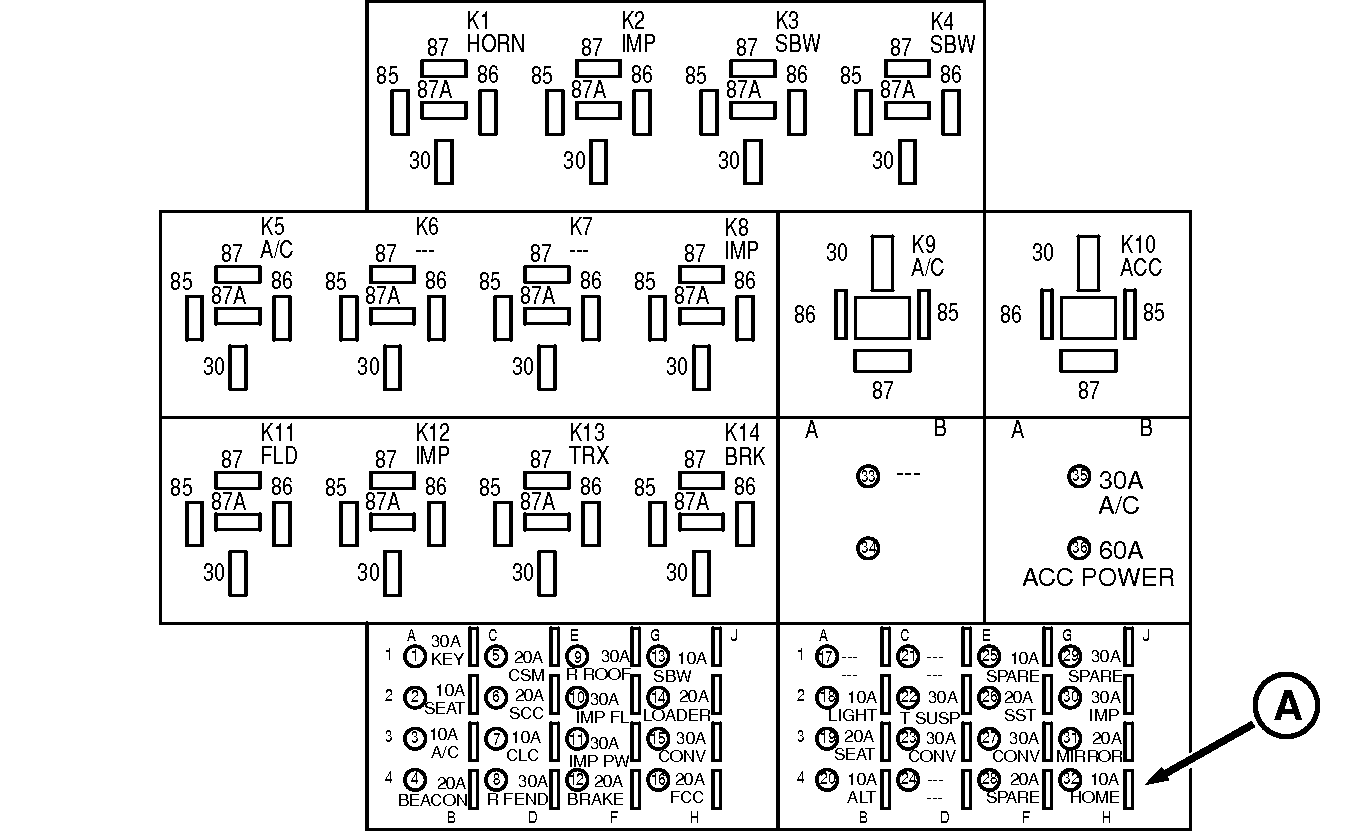

Move Fuse #32 And Retain

A - Fuse # 32

NOTE: Tow Mode allows a tractor, without engine operation, to be moved with steering and braking capabilities.

If tractor needs to be moved immediately, towing tractor a short distance while tractor is in Park will not damage system.

If tractor looses electrical power, park brake may reengage. If tractor has no electrical power, a 100 Amp electrical source must be connected. See Using a Battery Booster Or Charger in Operating the Engine Section of this Operator's Manual.

NOTE: Removing #32 fuse (A) enables electric hydraulic pump supplying oil for braking and steering. Enabling electric hydraulic pump allows tractor to be operated at a maximum of 8 km/h (5 mph) forward speed and 3 km/h (1.8 mph) reverse speed.

Fold seat backrest down to allow easier access and allow cab lighting to shine on load center when fuses are being inspected, replaced or removed.

1. Remove fuse # 32 (A) and retain.

2. Turn ignition key to “Run”.

   NOTE: When drive lever is removed from the Park position, any movement of brake pedals or steering wheel will engage electric hydraulic pump to supply hydraulic oil as needed.

3. Place tractor in Neutral.

4. Verify transmission is in Neutral. Corner post display will display "N" when transmission is in Neutral.
