Setting Distance Counter
RXA0098156-UN-07NOV08
CommandARM™ Menu Button
RXA0110779-UN-09SEP10

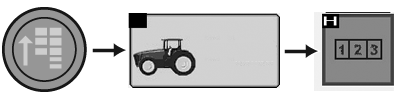

Menu → Performance Monitor → Performance Monitor Totals
RXA0110778-UN-09SEP10

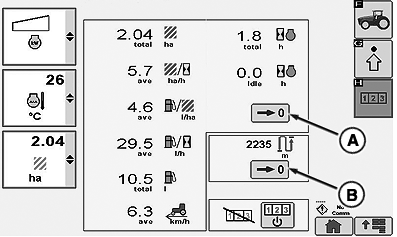

Performance Monitor Totals Page
A - Zero Area And Fuel Counter Button
B - Zero Distance Counter Button
-
Select Menu button.
-
Select Performance Monitor.
-
Select Performance Monitor Totals softkey.
-
To reset area counters or fuel counter, select Zero Area and Fuel Counter button (A).
-
To reset distance counter, select Zero distance counter button (B).
|
CommandARM is a trademark of Deere & Company |
OURX935,000007F-19-20100909 |
