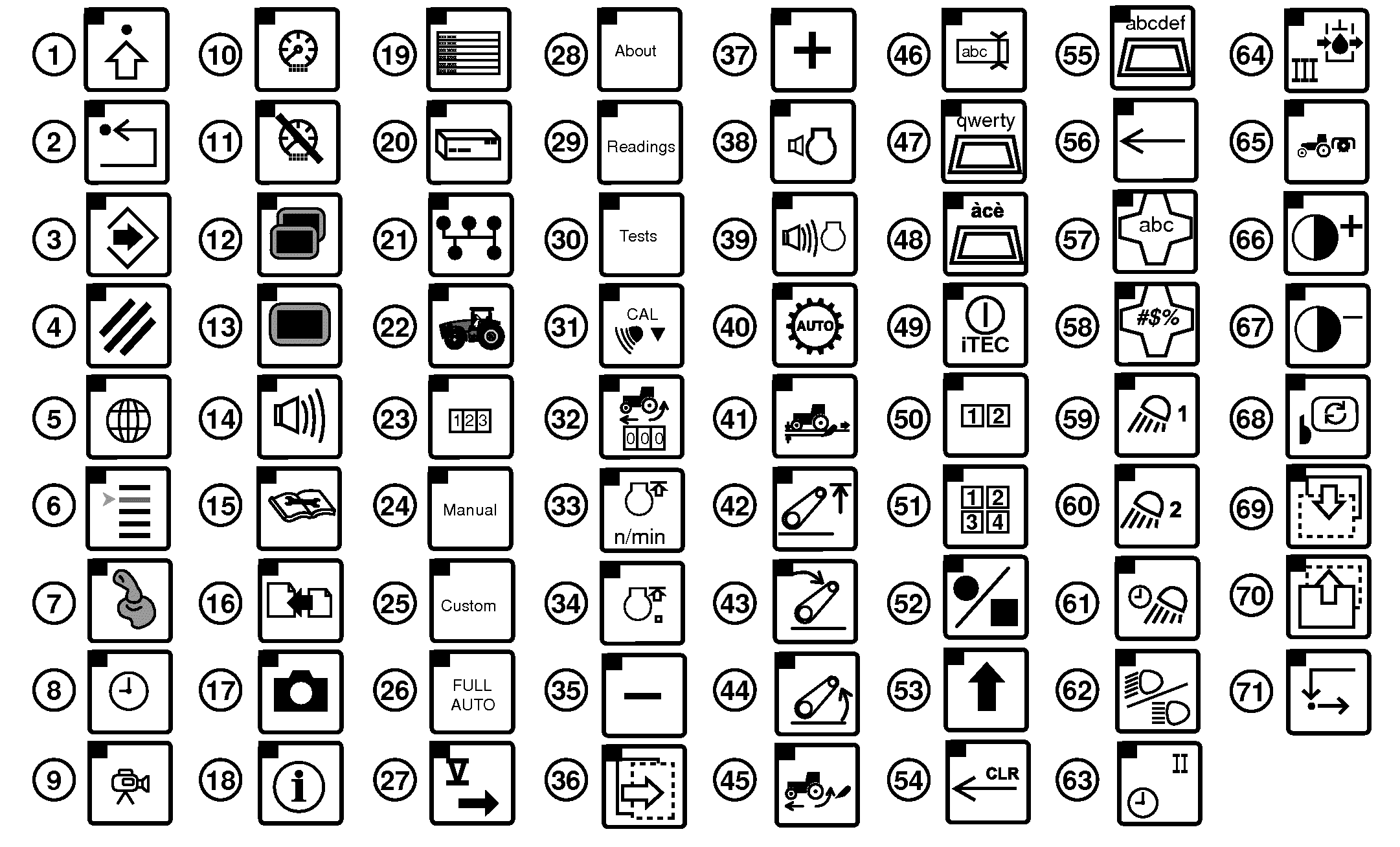

CommandCenter™ Right Region Softkeys

RXA0110850-UN-11OCT10

CommandCenter™ Softkeys

1 - Advanced Setting ¹

2 - Back ¹

3 - Save/Enter ¹

4 - Cancel ¹

5 - Regional Settings—Display

6 - High Light Color—Display

7 - Auxiliary Control—Display

8 - Date/Time—Display

9 - Video—Video

10 - Adjust Brightness—Display

11 - Dim Mode—Display

12 - Multiple Display—Display

13 - Main—Display

14 - Adjust Volume—Display

15 - Diagnostics

16 - Reprogramming — Message Center

17 - Transfer Debug Files— Message Center

18 - Information — Message Center

19 - Diagnostic Addresses — Message Center

20 - Electronic Control Unit — Message Center

21 - Bus Information — Message Center

22 - Performance Monitor Main

23 - Performance Monitor Settings

24 - Manual — IVT Transmission

25 - Custom — IVT Transmission

26 - Full Auto — IVT Transmission

27 - Advanced SCV Settings

28 - About — Display

29 - Readings — Display

30 - Tests — Display

31 - Calibrate Radar

32 - Wheel Slip

33 - Field Cruise Settings

34 - Field Cruise On/Off

35 - Decrease — Radio

36 - Next — Radio

37 - Increase — Radio

38 - Volume Compensation — Radio

39 - Volume —

40 - Automatic Power Shift Transmission

41 - Load Depth — Hitch

42 - Upper Limit — Hitch

43 - Drop Rate — Hitch

44 - Hitch Raise — Hitch

45 - Hitch Slip Sensitivity — Hitch

46 - Rename Implement — iTEC ™

47 - Lower Case — iTEC

48 - Special Letters — iTEC

49 - iTEC ON/OFF — iTEC

50 - Sequence Select — iTEC

51 - Sequence Select — iTEC (Field Installed Kit)

52 - Start/Stop Record Sequence — iTEC

53 - Upper/Lower Case Toggle — iTEC

54 - Clear Editing Box — iTEC

55 - Standard Alphabet — iTEC

56 - Back Space — iTEC

57 - Standard Alphabet — iTEC

58 - Special Characters — iTEC

59 - Field Position 1 — Lights

60 - Field Position 2 — Lights

61 - Egress Lighting — Lights

62 - High/Low Beam — Lights

63 - Detent Time — SCV ²

64 - Flow Rate — SCV ²

65 - Rear PTO Engagement

66 - Increase Contrast — Video

67 - Decrease Contrast — Video

68 - Mirror — Video

69 - Page Up — iTEC/TIA

70 - Page Down — iTEC/TIA

71 - TIA — Tractor Implement Automation
