Operator Station Description And Functions

RXA0109048-UN-29JUL10

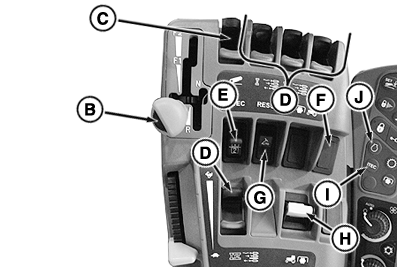

CommandARM™ Controls With IVT/AutoPowr Transmission Shown

RXA0109051-UN-28JUL10

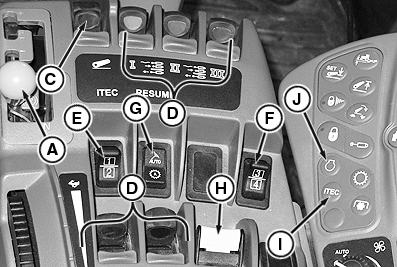

CommandARM™ Controls With Power Shift Transmission Shown

RXA0109052-UN-29JUL10

MFWD Button

RXA0109053-UN-29JUL10

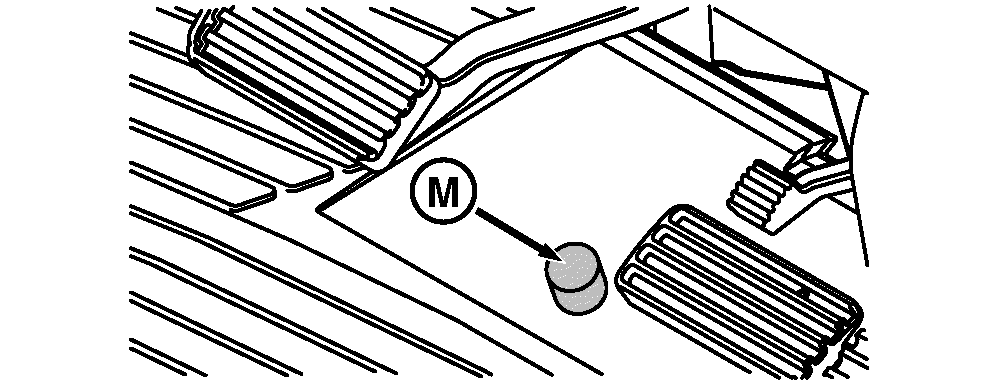

Differential Lock Button

RXA0109049-UN-30JUL10

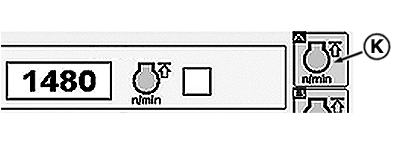

Engine Page With FieldCruise™

iTEC has two factory installed sequences in which learned functions are stored. A sequence is defined as the start of the first recorded function to completion of last recorded function. Example of two sequences would be, one sequence made up of a series of functions, operations and distances used at start of field and a second sequence used at a water way in the center of the field. Each program can include up to 20 functions. The programs remain in the memory until they are deleted or overwritten, even if the electrical current is switched off.

iTEC Functionality
	Item	Function(s)
A	PowerShift Transmission Lever	Upshift or Downshift in Forward Gear for PowerShift Transmission
B	IVT (Infinitely Variable Transmission)™ /AutoPowr™ Set Speed Adjuster	Change Set Speed
C	Rear Hitch Lever	Raise, Lower
D	SCV Levers	Extend/Retract/Float/Cancel
E	Sequence Switch	1 and 2
F	Sequence Switch	3 and 4
G	APS Resume Switch (PST Transmission Only)	Resume
H	Rear PTO	On/Off
I	iTEC Short Cut Button	Alternative Method Of Navigating To iTEC Pages
J	Engine Short Cut Button	Method Of Navigating To Engine Page To Set FieldCruise™
K	FieldCruise Adjustment Page	Set FieldCruise
L	MFWD	On/Off/Auto/Brake Assist
M	Differential Lock Button	On/Off
