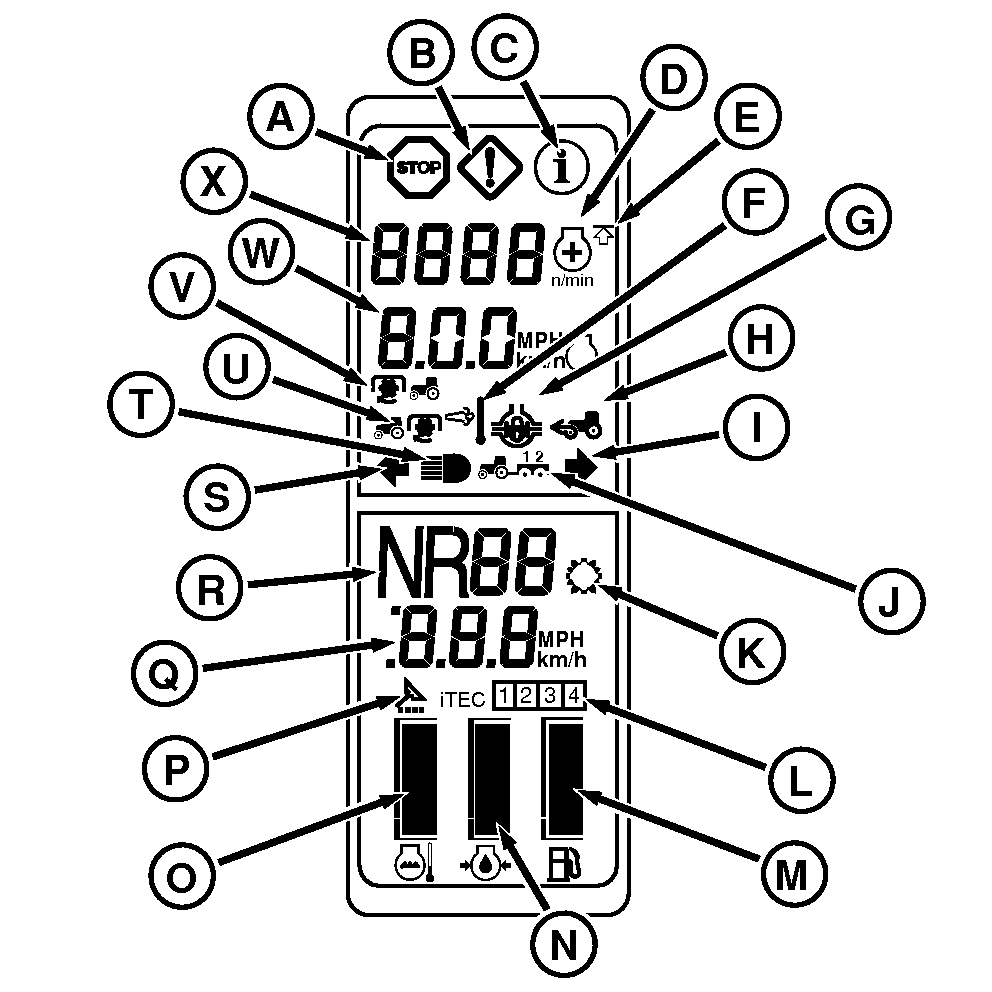

Corner Post Display

RXA0105010-UN-13OCT09

Corner Post Display

A - Stop Indicator

B - Service Alert Indicator

C - Information Indicator

D - Power Increase Indicator

E - FieldCruise™ Indicator

F - High Exhaust System Temperature (HEST) Indicator

G - Differential Lock Indicator

H - MFWD Indicator (Wheel Tractors Only)

I - Right Turn Indicator

J - Trailer Indicator (If Equipped)

K - Full Load Indicator¹ APS Indicator ² (If Equipped)

L - iTEC Indicator

M - Fuel Level Gauge

N - Engine Oil Pressure Gauge

O - Coolant Temperature Gauge

P - AutoTrac™ Indicator

Q - Vehicle Speed

R - Set Speed³/Gear Forward or Reverse) ²Direction

S - Left Turn Indicator

T - High Beam Indicator

U - Rear PTO Indicator

V - Front PTO Indicator (If Equipped)

W - Vehicle Travel Speed

X - Tachometer
