Using Hydraulic Trailer Brakes (If Equipped)

CAUTION: Avoid possible injury from losing control of tractor equipped with IVT (Infinitely Variable Transmission)™transmission operating on downhill slopes. Tractor wheels may lock and skid on slippery downhill slopes. (See Downhill Operation In Slippery Conditions in Operating Tractor—IVT Transmission section.)

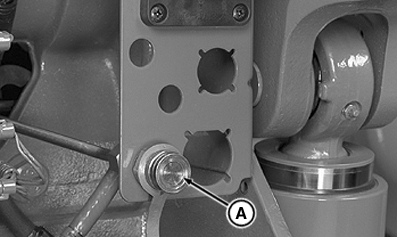

RXA0082409-UN-25JUL05

A - Trailer Brake Coupler

Depress brake pedals to operate hydraulic trailer brake. The braking effect depends on pressure applied to the brake pedals.

IMPORTANT: Reduce brake wear:

• Make sure the pressure hose is connected.
• Select the same gear for both downhill and uphill driving.
• Check the hydraulic trailer brake regularly for correct functioning.
