Lubricating Rear Hitch Components

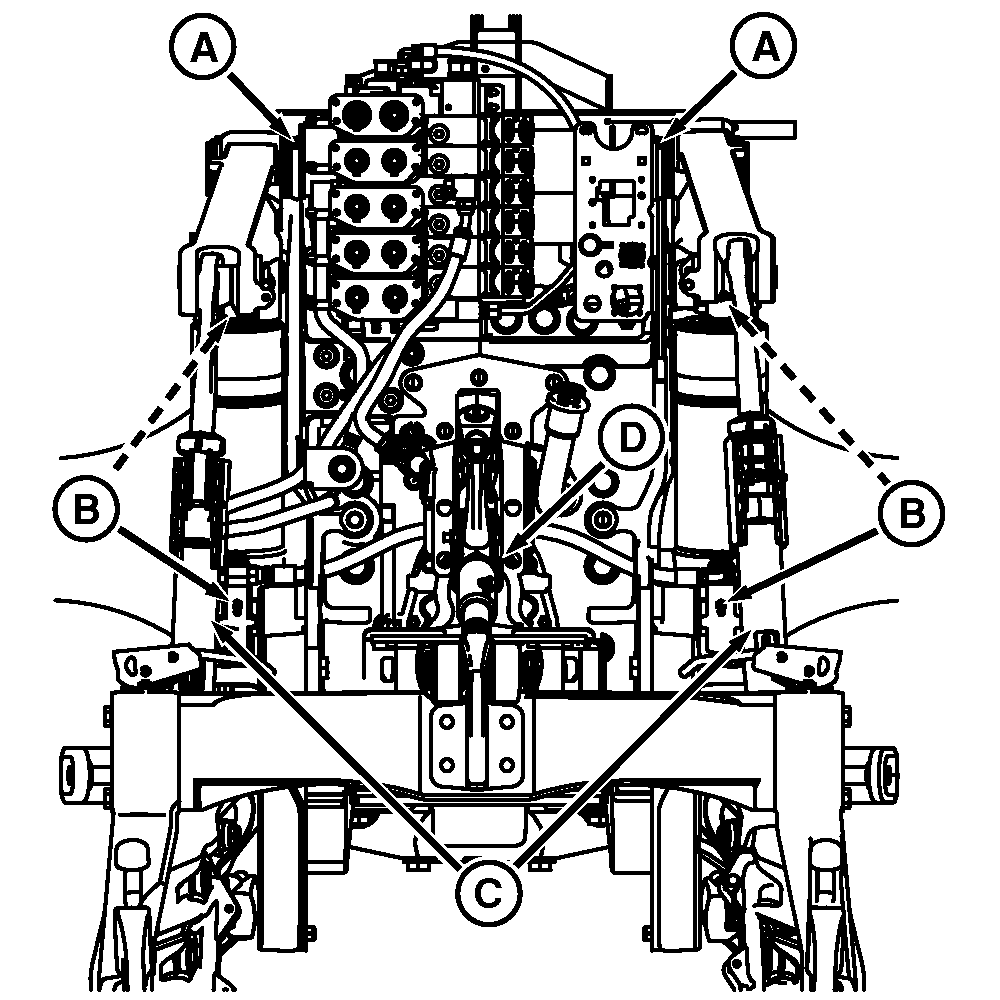

RXA0097174-UN-22FEB08
A - Rockshaft
B - Lift Cylinders
C - Lift Links
D - Center Link
Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section.
Lubricate hitch components (A—D).
|
John Deere is a trademark of Deere & Company |
OURX935,0000C39-19-20091020 |
