Using FieldCruise

IMPORTANT: Engine must be running for FieldCruise adjustment to operate.

RXA0099745-UN-07NOV08

CommandCenter™ Menu Engine Icon

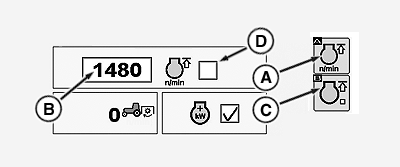

RXA0106463-UN-04AUG10

Engine Page

A - FieldCruise Settings Softkey

B - RPM Input Box

C - FieldCruise On/Off Softkey

D - Check Box

Engine speed can be adjusted from 1050—2100 rpm. Changes to rpm setting take place immediately.

FieldCruise utilizes a constant speed governor curve, providing instant response to varying loads.

Limiting engine speed in light load situations may improve fuel economy.

IVT™/AutoPowr™: Selecting appropriate CommandCenter™ IVT setting is the preferred method of controlling engine rpm, but FieldCruise can be considered for certain applications such as PTO operation when baling.

To Activate FieldCruise:

1. Select Engine.

   NOTE: When FieldCruise On/Off softkey (C) is selected, it toggles FieldCruise on or off and displays check box (D) either checked for FieldCruise ON or unchecked for FieldCruise OFF.

2. When engine page appears, select FieldCruise On/Off softkey (C).

   To Adjust Engine rpm:

   NOTE: When FieldCruise Settings softkey (A) is selected, rpm input box (D) is highlighted.

3. Select FieldCruise Settings softkey.

4. At rpm input box select desired engine speed. Rotate thumb wheel forward to increase engine rpm or rearward to decrease engine rpm.
