Transmission-Hydraulic System Warm-Up

RXA0100362-UN-03FEB09

Install Jumper Hose Into SCV Coupler

RXA0106101-UN-29JAN10

CommandCenter Display

RXA0099479-UN-14OCT08

Drop Down Menu

RXA0099914-UN-08DEC08

CommandArm

A - Jumper Hose

B - Temperature Display

C - Extend Flow Bar Graph

D - Flow Input Box

E - Extend Time Drop Down Box

F - SCV I Lever

G - SCV II Lever

H - Retract Flow Bar Graph

I - Retract Time Drop Down Box

J - Continuous

Avoid operating tractor under load until transmission/hydraulic system has warmed up.

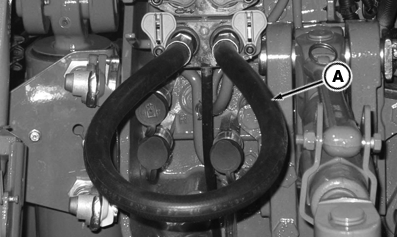

1. Install jumper hose (A) into SCV I coupler.

2. At the Cab Switch Module, press SCV button.

3. In the screen left region activate hydraulic temperature screen (B).

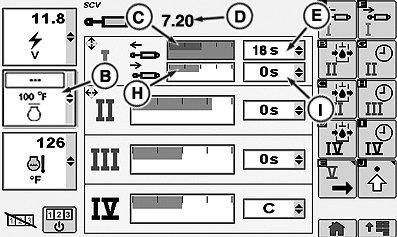

4. Select SCV I extend flow bar graph (C).

5. Rotate CommandARM™ thumb wheel, clockwise to increase or counterclockwise to decrease flow setting. Set SCV I extend flow at 7.2 (D).

6. Select arrows in SCV I extend time box (E).

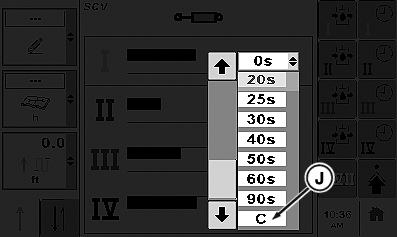

7. At the pull down menu, scroll down to C, continuous (J), then press Cab Switch Module confirm button.

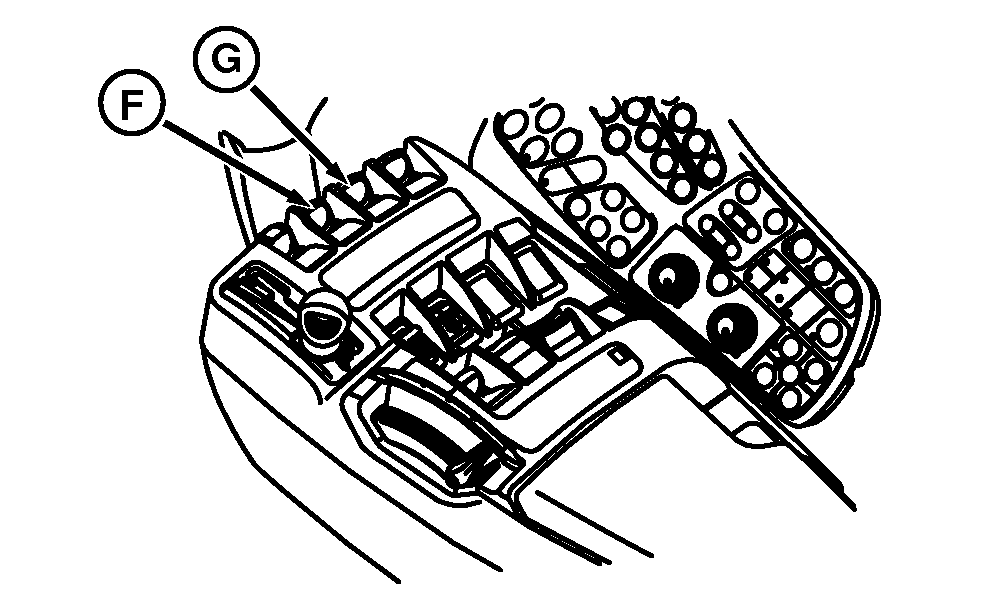

8. Pull SCV I lever (F) to extend.

9. Select SCV I retract flow bar graph (H).

10. Rotate CommandARM™ thumb wheel, clockwise to increase or counterclockwise to decrease flow setting. Set SCV I retract flow at 7.2 .

11. Select arrows in SCV I retract time box (I).

12. At the pull down menu, scroll down to C, Continuous, then press Cab Switch Module confirm button.

13. Set SCV II as described above. At CommandCenter™ select SCV II extend and retract softkeys and pull SCV II lever (G) to perform system warm up.

14. Shift transmission to PARK position and operate engine at 1500 rpm.

15. Monitor left region hydraulic temperature screen until temperature reaches 38° C (100 ° F).

16. Return SCV I and SCV II lever to neutral position.

17. Disconnect jumper hose.
