Adjusting Hitch Upper Limit

1. Select upper limit shortcut button (A).


   RXA0107325-UN-16APR10

   Hitch Upper Limit Shortcut Button


   RXA0107181-UN-02AUG10

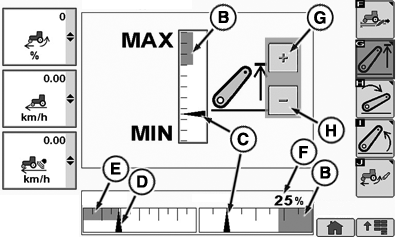

   Hitch Load/Depth Page

   A - Hitch Upper Limit Shortcut Button

   B - Upper Set Limit

   C - Position/Hitch Response Indicator*

   D - Commanded Depth Indicator

   E - Stored Operating Depth Indicator

   F - Hitch Position Value

   G - Touch Screen Increase Value (If Equipped)

   H - Touch Screen Decrease Value (If Equipped)

   NOTE: Changes to upper limit setting take place immediately.

   *In this application, Position Indicator and Hitch Response Indicator move simultaneously.

---




2. Move upper limit setting indicator (B) to desired position. Current hitch position is represented by position indicator (C).
