Adjusting Hitch Drop Rate

IMPORTANT: Excessive drop speed may cause injury or machine damage. Fully lowering implement should take at least two seconds.

1. Press drop rate shortcut button (A).


   RXA0107326-UN-16APR10

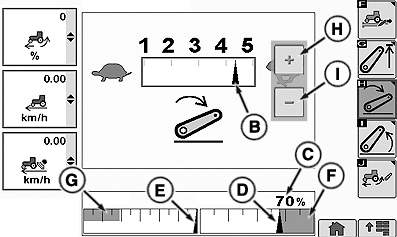

   RXA0107187-UN-02AUG10

   A - Hitch Drop Rate Shortcut Button

   B - Hitch Response Indicator

   C - Hitch Position Value

   D - Position Indicator

   E - Commanded Depth Indicator

   F - Upper Set Limit

   G - Stored Depth Indicator

   H - Touch Screen Increase Value (If Equipped)

   I - Touch Screen Decrease Value (If Equipped)

---




2. Observe display. Drop rate setting is represented by hitch response indictor (B).

   NOTE: Changes to rate of drop setting take place immediately.
