Using Front Hitch (If Equipped)

RXA0110608-UN-02SEP10

Front Hitch

RXA0110607-UN-07OCT10

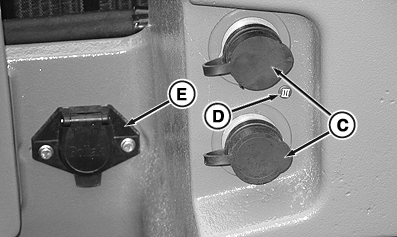

SCV Receptacles and 7 Terminal Outlet.

A - External Raise Switch

B - External Lower Switch

C - SCV Receptacle

D - SCV Number Button

E - Seven-Terminal Outlet

CAUTION: Avoid possible personal injury and tractor damage. DO NOT use front hitch to lift tractor. Use correct lifting equipment.

IMPORTANT: Avoid damage to equipment. Be sure load is balanced side-to-side and front-to-rear.

Tractors equipped with front hitch are capable adjusting hitch height using external raise (A) and external lower (B) switches.

SCV receptacles (C) installed on the front of front hitch can be configured to respond to any SCV lever on CommandARM™. After front receptacles are configured change SCV number button (D) ¹ to identify which SCV lever controls the front hitch SCV.

Seven-Terminal Outlet (E) see Using Seven-Terminal Outlet in Lights section of this Operator's Manual.
