Checking Transmission PARK Position
NOTE: For tractors equipped with PowerShift transmission, shift lever must be in PARK.
For tractors equipped with IVT™/AutoPowr™ transmission, reverser lever must be in PARK.
RXA0086598-UN-09FEB06

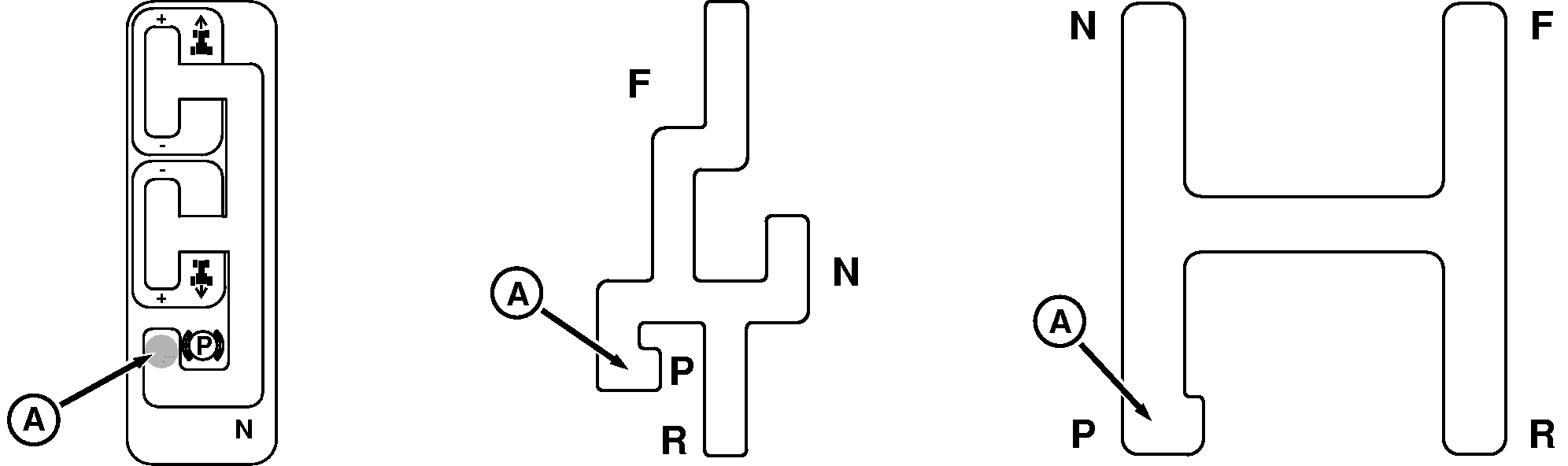

PowerShift Transmission Shift Lever, IVT™/AutoPowr™ Left-Hand And Right-Hand Reversers In PARK position
A - Shift/Reverser Lever in PARK
Position tractor on a 30% incline (1 m (3.3 ft) vertically for every 3 m (9.8 ft) horizontally) with front of tractor facing downward.Move shift/reverser lever (A) to PARK position.
Transmission should be repaired immediately by your John Deere™ dealer, if tractor does not hold on incline with shift/reverser lever in PARK position.
|
AutoPowr is a trademark of Deere & Company John Deere is a trademark of Deere & Company |
OURX935,000107C-19-20100428 |
