Programmable Lights

CAUTION: Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim Road Lights to low-beam for oncoming vehicles. Avoid using Flood Lights which could blind or confuse other drivers.

RXA0107022-UN-14JUN13

Steering Column Light Switch

RXA0106075-UN-18AUG10

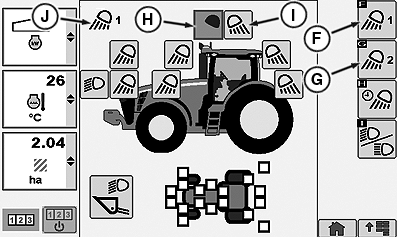

CommandCenter™ Lights Page

RXA0106384-UN-26MAR10

CommandArmCommandARM™ Controls Lights Buttons

A - Selector Knob

B - OFF

C - Parking Lights

D - Road Lights

E - Flood Lights

F - Flood Lights 1 Soft Key

G - Flood Lights 2 Soft Key

H - Light Configured OFF

I - Light Configured ON

J - Flood Lights Position Indicator

K - Road Lights

L - Flood Lights 1

M - Flood Lights 2

N - Road Light Indicator

O - Loader Light Indicator

Selector knob (A) is in OFF position (B). Turn Selector knob forward to Park Lights (C) turns on brake lights. Turn Selector knob forward to Road Lights (D) turns on either high beam or low beam Road Lights. Turn Selector knob forward to Flood Lights (E) turns on all Floods Lights previously configured at CommandCenter Light page.

When the steering column Selector knob is turned to Flood Lights, selecting Flood Lights 1 soft key (F) allows operator to configure which Flood Lights are ON or OFF for that application. Operator can toggle between Flood Lights 1 or Flood Lights 2 simply by pressing Flood Lights 1 button (L) or Flood Lights 2 button (M) respectively. Selecting Flood Lights (2) soft key (G) displays second option of Flood Lights. Verify Flood Lights configuration displayed by looking at Flood Lights Position Indicator (J) in the upper left corner of the CommandCenter Light page.

Light display shows for 10 seconds whenever light switch is changed to a programmable setting. If no changes are made, display returns to last screen shown. Light indicators change from black (H) to white (I) when configured ON.

CommandArm Controls indictor lights (N or O) indicates the status of Road Lights or Loader Lights if equipped.

While operating in the field pressing Flood Lights 1 (A) or Flood Lights 2 (B) will display a quick view (3 seconds) of the appropriate lights programmed on before defaulting back to previous page displayed on COMMANDCENTER .

RXA0103507-UN-15JUN09

CommandArm Controls Field Lights Buttons

RXA0107023-UN-18AUG10

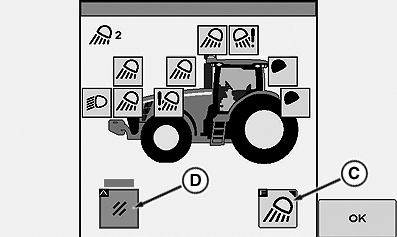

Lighting Quick Look

A - FLood Lights 1

B - Flood Lights 2

C - Lights

D - Cancel
