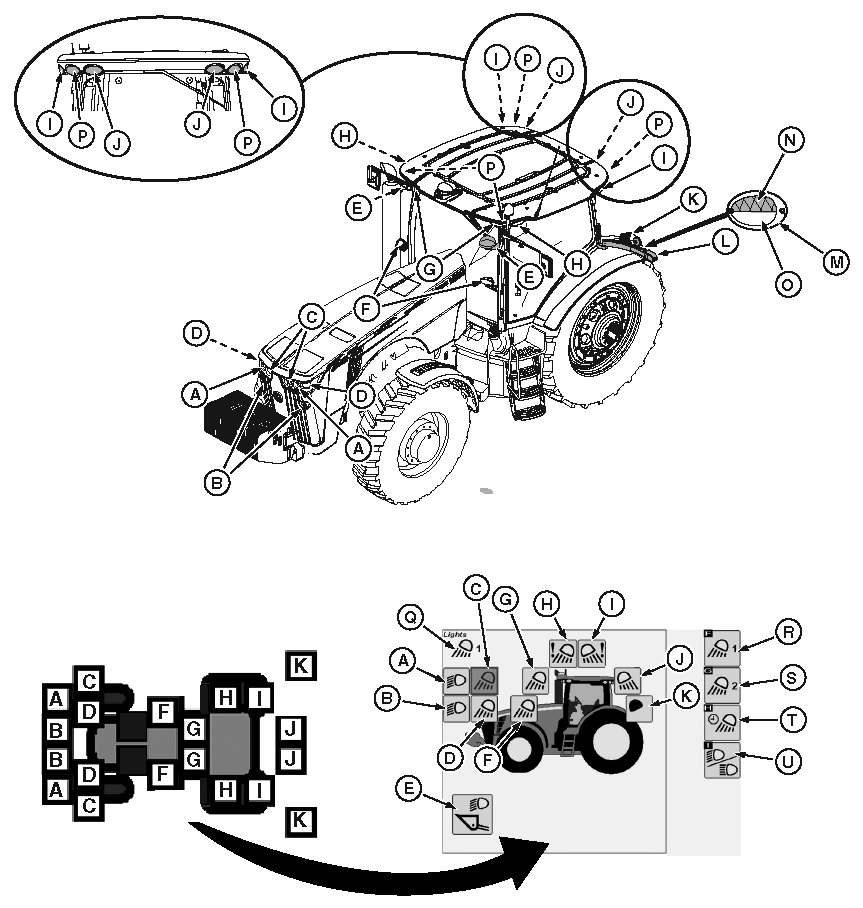

Light Identification

RXA0107341
RXA0107341-UN-18AUG10

A - Road Lights (High Beam)

B - Road Lights (Low Beam)

C - Inner Hood

D - Outer Hood

E - Loader

F - Mid Body

G - Front Inner Roof

H - Front Side Roof 1

I - Rear Side Roof Front Side Roof 1

J - Rear Inner Roof

K - Rear Fender 2

L - Extremity Arm

M - Rear Lights

N - Amber Lens

O - Red Lens

P - Front And Rear Outer Roof (Amber Light Bulbs)

Q - Indicator, Flood Light Position

White Lights are any exterior tractor lights that do not have colored lenses or colored bulbs and are made up of both Road Lights and Flood Lights.

Lights are configured on CommandCenter™ light page. White Lights (A through K) are configured ON by selecting that particular light. Selecting a particular light a second time will toggled it OFF. CommandARM™ controls actually turn lights on and off, See Programmable Lights in this section.

CommandCenter is a trademark of Deere & Company
CommandARM is a trademark of Deere & Company
1 In this illustration, depicted as “light programmed ON—faulted
2 In this illustration, depicted as “Programmed OFF”

OURX935,0001082-19-20100506
