Controls Identification

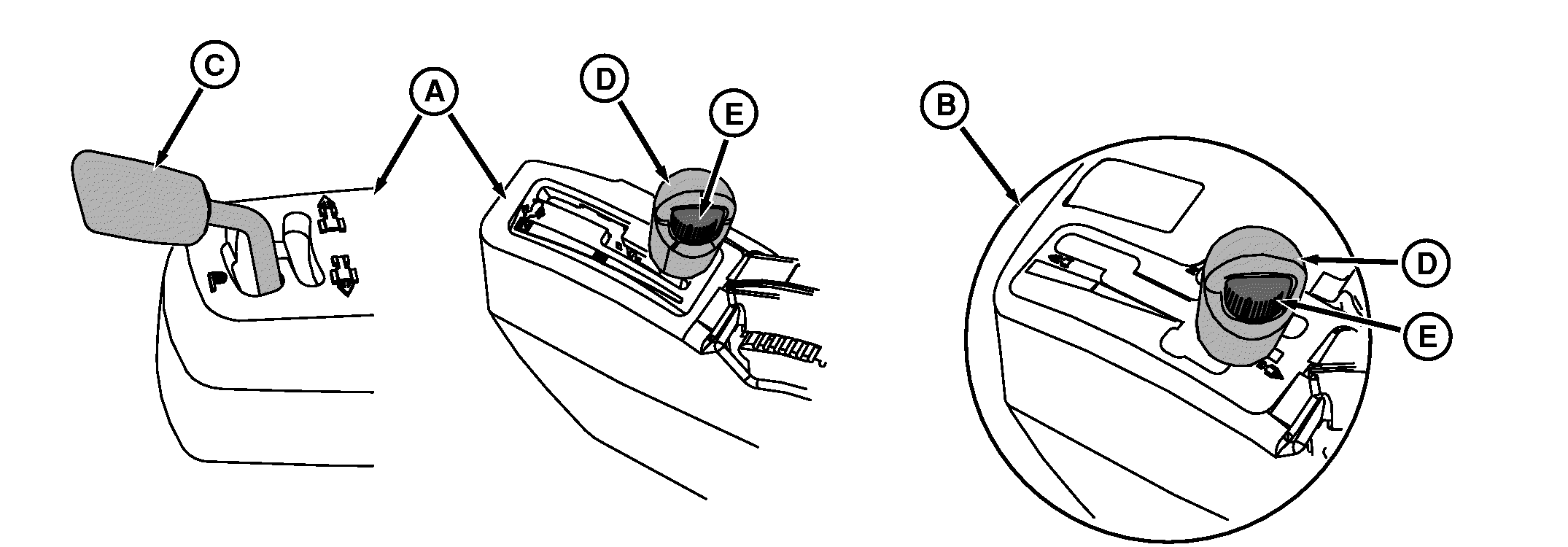

RXA0101118-UN-20MAR09

IVT™/AutoPowr™ Controls

A - Left Hand Reverser Controls

B - Right Hand Reverser

C - Left-Hand Reverser Lever

D - Speed Control Lever

E - Set Speed Adjuster

IVT™/AutoPowr™ tractors are equipped with either a left-hand reverser or right-hand reverser. A left-hand configuration requires two levers; the left-hand reverser lever (C) which controls tractor direction, park and neutral and the speed control lever (D), located on the CommandARM™ that controls ground speed.

The right-hand option consists of a right-hand reverser lever (B) located in the CommandARM and controls tractor direction, park, neutral, and ground speed.

There are two variable speed bands in the forward direction on all tractors. Tractors equipped with a left-hand reverser also have two speed bands in reverse. Tractors equipped with right-hand reverser will have only a single reverse band.

Set speeds are the maximum ground speeds in each speed band. The speed control lever must be pushed to the end of the slot to achieve set speeds. Rotate set speed adjuster (E) clockwise to increase and counterclockwise to decrease set speed.
