Custom IVT™/AutoPowr™ Settings

NOTE: All settings pertaining to this page are only applicable when IVT™/AutoPowr™ transmission is in Custom mode.

RXA0110751-UN-20SEP10

Transmission Custom Settings Page

RXA0110752-UN-16SEP10

Transmission Custom Settings Page

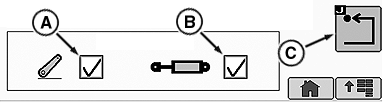

A - Load Anticipation (Hitch)

B - Load Anticipation (SCV)

C - Back

The Load Anticipation feature allows the IVT™/AutoPowr™ transmission to predict loads due to activation of hitch or SCV movement. By default, Load Anticipation is enabled in the "Full Auto" mode selected on the Transmission page. In the "Custom" mode, load anticipation for the hitch is enabled when the hitch check box is checked. In the "Custom" mode, load anticipation for SCVs is enabled when the SCV check box is checked.

Fuel economy feature may raise minimum engine speed to 1500 rpm when load anticipation is enabled and either the hitch/ SCV is placing a heavy load on the engine or an SCV is in continuous flow. If load on the engine is still too much, load anticipation feature may raise minimum engine speed to 1800 rpm.

1. Select Transmission.

2. Select Custom softkey.

   NOTE: Auto Shift Engine Speed Droop PTO ON can be set from 2 % —26 % or PTO OFF can be set from 2% — 26 %.

   To Set Auto Shift Engine Speed Droop, PTO ON:

3. Select Auto Shift Engine Speed Droop input box PTO On. PTO On box highlights.

4. Adjust percentage value to desired value.

   To Set Auto Shift Engine Speed Droop, PTO OFF:

5. Select Auto Shift Engine Speed Droop input box PTO OFF. PTO OFF box highlights.

6. Adjust percentage value to desired value.

   To Set ECO Engine Speed rpm, PTO ON:

7. Select ECO Engine Speed PTO ON box . When drop down box appears, select desired rpm from options listed.

   To Set ECO Engine Speed, PTO OFF:

8. Select ECO Engine Speed PTO OFF box. When drop down box appears, select desired rpm from options listed.

   To Turn On Load Anticipation:

9. Select either Hitch check box (A) or SCV check box (B). When SCV check box is checked, engine speed is boosted, if needed, at each occurrence SCV is extended or retracted. When Hitch check box is checked, engine speed is boosted, if needed, at each occurrence hitch is raised or lowered.

10. To return to previous page, select Return softkey (C).
