CommandCenter™ Pages Description And Functions

At the iTEC Operation page:

RXA0110772-UN-09SEP10

iTEC Shortcut Button

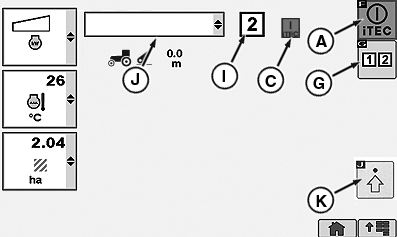

RXA0106085-UN-28JUL10

iTEC Operations Page With Factory Installed 1 And 2 Sequence Button

RXA0108636-UN-28JUL10

Application Status Options

RXA0107036-UN-16APR10

Factory Installed Sequence Softkey 1 And 2 And Field Installed Kit Option With Sequence Softkey 1 Through 4

A - iTEC ON/OFF Softkey

B - OFF Indicator

C - ON Indicator

D - Sequence Executing Indicator

E - Learning Mode Indicator

F - Learning Distance Mode Indicator

G - Sequence Softkey (1 and 2)

H - Sequence Softkey (3 and 4) ¹

I - Sequence In Process Indicator Box

J - Implement

K - Advanced Settings

At the iTEC Edit page:

RXA0110773-UN-09SEP10

iTEC→ Advanced Settings

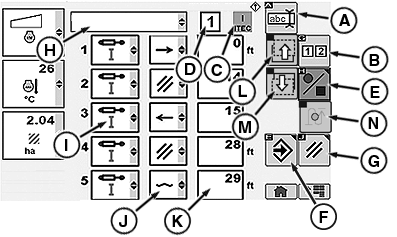

RXA0106087-UN-27JUL10

iTEC Edit Page With Factory Installed 1 And 2 Sequence Softkey

1. Select iTEC.

2. Select Advanced Settings softkey.

• A—Edit Implement Name Softkey navigates to edit implement name
• B—Sequence Softkey toggles between sequence 1 and 2²
• C—iTEC is ON
• D—Sequence Box displays sequence 1 is active
• E—Start/Stop Record Sequence
• F—Enter/Save Softkey
• G—Cancel Softkey
• H—Implement Identification Box
• I—Function Drop Down Box
• J— Operation Drop Down Box
• K— Distance Input Box (Distance at which function listed in left column is triggered after sequence execution.)
• L— Previous Page Softkey
• M— Next Page Softkey
• N—Learn Distance Only Softkey³

All Function/Operation/Distance Options found in center region are indicated below.

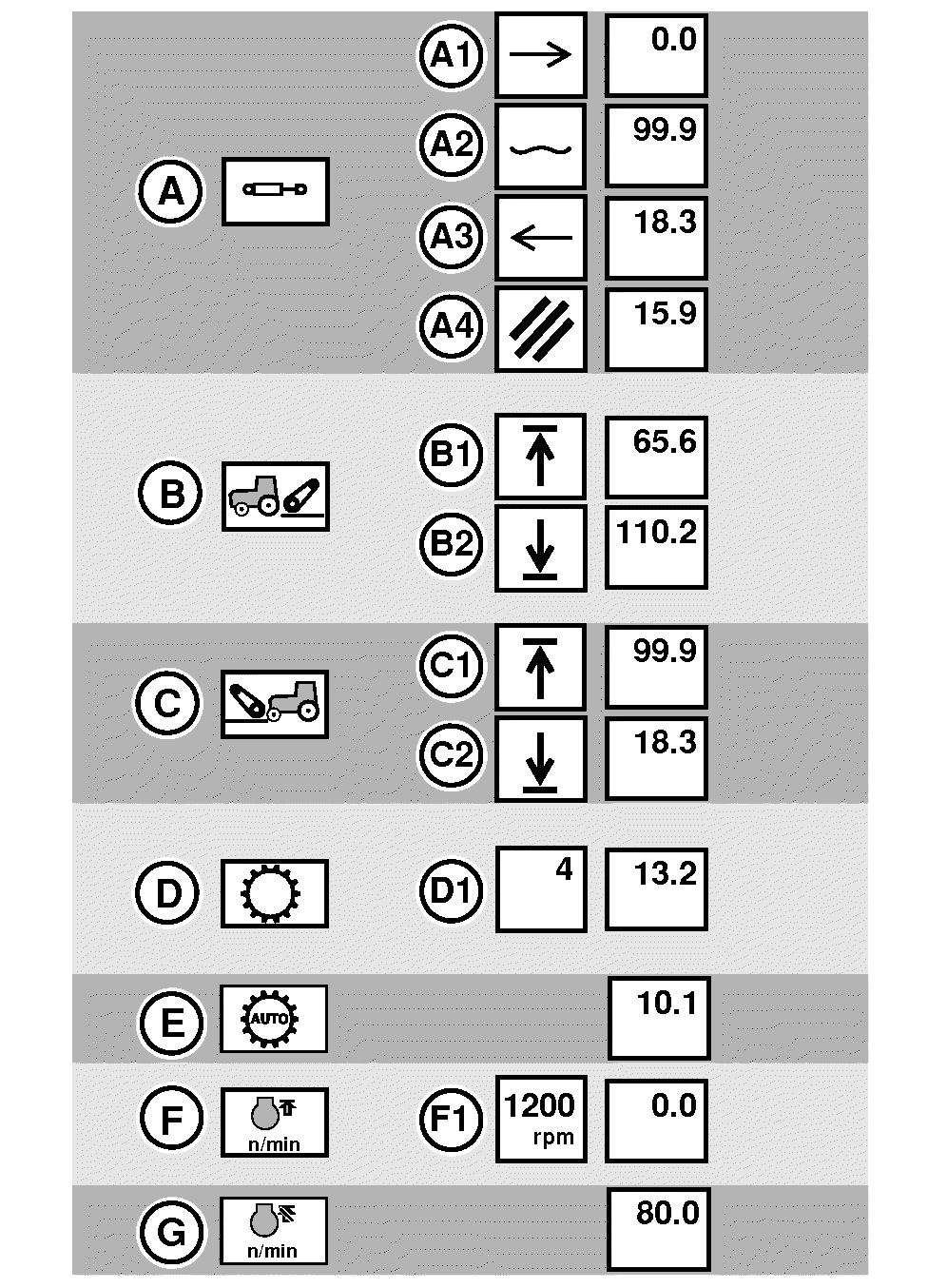

RXA0108879-UN-30JUL10

First Column: Function, Second Column: Operation, Third Column: Distance

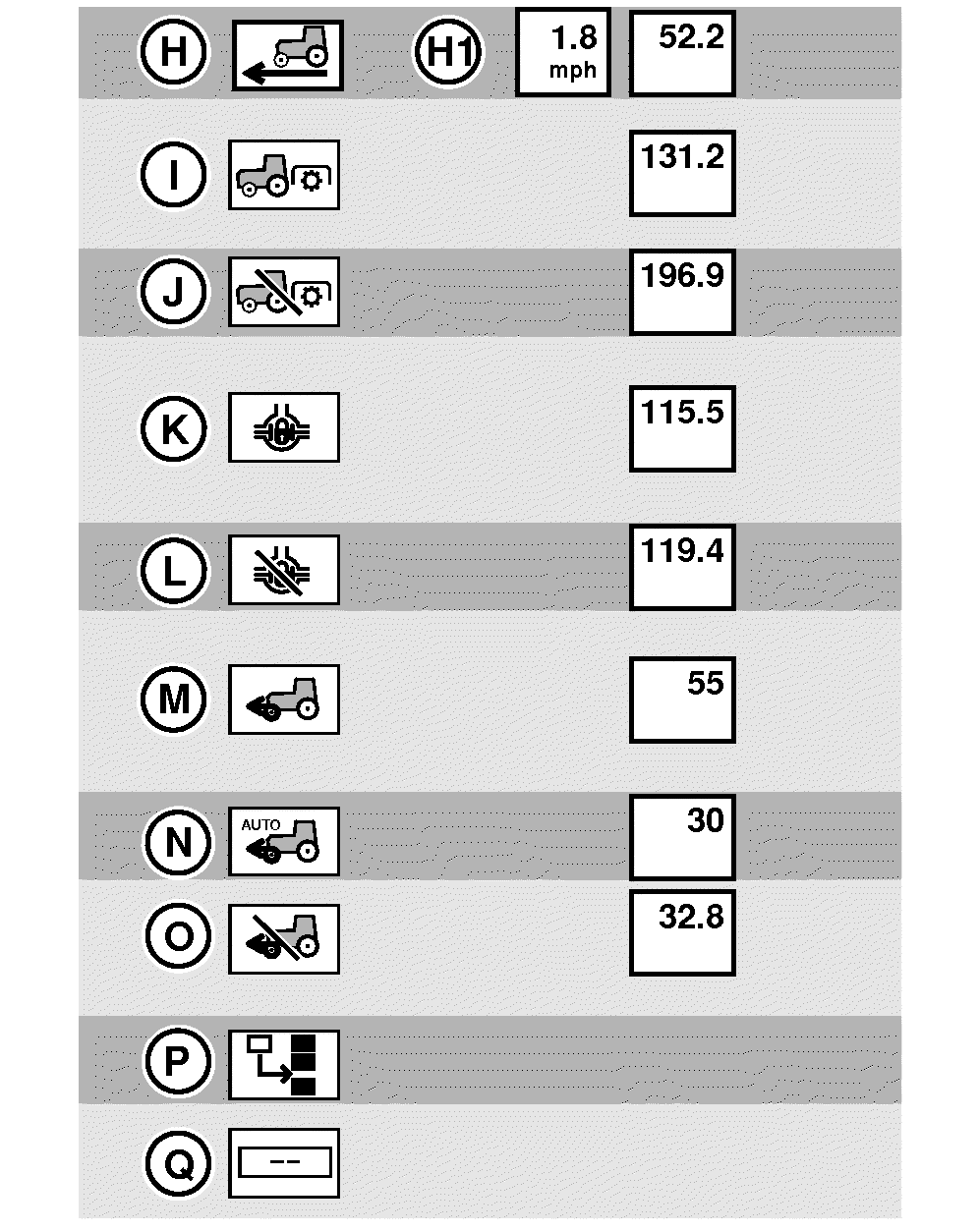

RXA0108880-UN-30JUL10

First Column: Function, Second Column: Operation, Third Column: Distance—Continued

• A—SCV's (I through VII)
  • A-1 Extend
  • A-2 Float
  • A-3 Retract
  • A-4 Cancel

• B—Rear Hitch
  • B-1 Raise
  • B-2 Lower
• C—Front Hitch
  • C-1 Raise
  • C-2 Lower
• D—Transmission⁴
  • D-1 Gear
• E—Automatic PowerShift (APS)
• F—FieldCruise™
  • F-1 RPM (1100—2200)
• G—FieldCruise™ Off
• H—Set Speed ⁵
  • H-1 Speed

    (0.8—55 km/h (0.5—34.4 mph) both in increments of 0.1.

• I—Rear PTO
• J—Rear PTO Off
• K—Differential Lock
• L—Differential Lock Off
• M—MFWD On
• N—MFWD (Auto)
• O—MFWD (Brake Assist)
• P—Insert (Used to shift function down while in edit mode.)
• Q—Delete

Distance options are entered either in metric or US/Imperial distances and using either keypad or input box

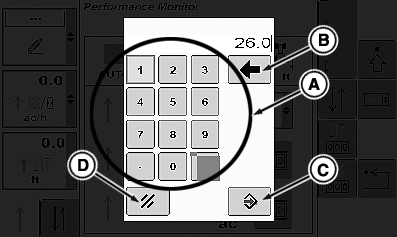

RXA0107389-UN-16APR10

Keypad To Set Distance

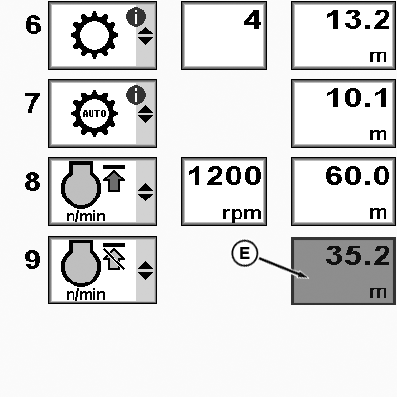

RXA0108932-UN-27JUL10

Distance Input Box On iTEC Edit Page

A - Keypad

B - Backspace

C - Save/Enter

D - Cancel

E - Input Box

Entering US/Imperial distances or when using TouchScreen:

1. Select Distance input box.

   NOTE: To make a correction on keypad, select Backspace key (B).

2. When keypad displays, select desired distance by selecting appropriate keypad (A) numbers, then select enter button (C). Cancel by selecting cancel button (D).

Entering metric units of measure or when using Thumb wheel:

1. Select Distance input box (E).

2. Input box highlights, then scroll forward to increase numbers or rearward to decrease value in input box.

3. Select CommandARM™Confirm button.

NOTE: A - Information Alert, Function Limited - will display if function is not in correct state when sequence is in passive mode, programmed, but not executing. (Ex: PTO Switch Off).

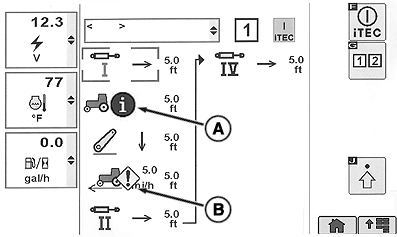

RXA0107038-UN-20AUG10

Function Limited Alerts

A - Information Alert—Function Limited

B - Service Alert—Function Limited

B - Service Alert, Function Limited - Function will not execute while in execution mode and some conditions may be related to a Service Alert for that function. (Ex: PTO Switch Fault).

Function Limited	Corrective Action
Differential Lock	Vehicle speed is above threshold to turn off differential lock.
PTO	Switch is not in the ON-position.
Vehicle Speed	Right Hand Reverser (if equipped) is in Reverse
	Current Set Speed < 0.8 km/h
APS	No Automatic PowerShift resume gear selected
Rear hitch	Rear Hitch Locked
Front Hitch	Front Hitch Locked
	Front Hitch not in front hitch mode
SCV	SCV locked
	Valve is not in Float position
FieldCruise™	Access Manager has FieldCruise locked
