Remove and Install Vari-Cool™ Fan Belt

1.

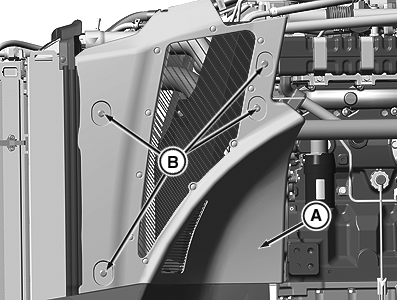

   RXA0107862-UN-28MAY10

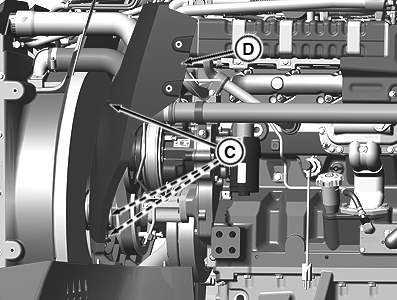

   RXA0107863-UN-28MAY10

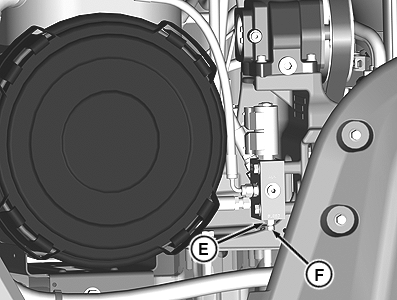

   RXA0107865-UN-28MAY10

   A - Side Panel

   B - Cap Screws 4 used

   C - Cap Screws 3 used

   D - Diverter Panel

   E - Nut

   F - Bleed Screw

   Raise hood.

---




2. Remove cap screws (B) and left-hand front side panel (A).

3. Remove cap screws (C) and diverter panel (D).

4. IMPORTANT: Removing bleed screw drains oil. Loosen bleed screw only enough so the oil flows back into reservoir (a maximum of two full turns).

   Loosen nut (E) and bleed screw (F).

5.

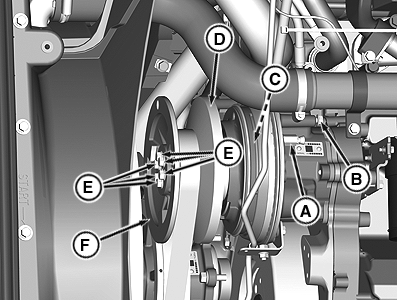

   RXA0107867-UN-28MAY10

   A - Vent Adapter

   B - Cap Screw

   C - Piston Plate

   D - Inner Sheave

   E - Cap Screws (6 used)

   F - Front Pulley

   Remove vent adapter (A) from housing.

---




6. Remove cap screw (B) and install into vent adapter hole in piston plate (C).

7. Tighten cap screw (B) to pull inner sheave (D) inward.

8. Hold front pulley (F) and remove cap screws (E).

9. Pull front pulley evenly off shaft.

10.

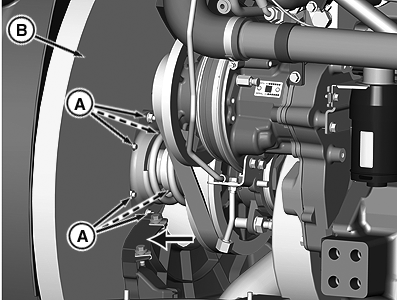

    RXA0107868-UN-28MAY10

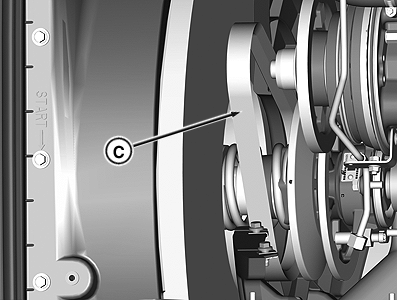

    RXA0107869-UN-28MAY10

    A - Nuts (6 used)

    B - Fan

    C - Belt

    Remove six nuts (A) and carefully position fan (B) against radiator.

---




11. Remove belt (C) through opening between fan and hub.

12. Discard old belt.

13. Install new fan belt between fan and hub so that it is positioned between lower pulley halves.

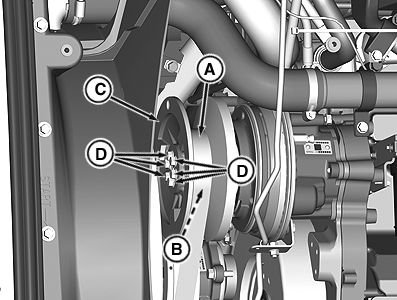

    RXA0107915-UN-28MAY10

    A - Belt

    B - Drive Shaft

    C - Front Pulley

    D - Cap Screw (6 used)

---




14. Slide fan into place, install nuts and torque to specification.

    Item	Measurement	Specification
    Fan-to-Drive Assembly Nut	Torque	25 N·m (221 lb.-in.)

15. Pull belt (A) onto drive shaft (B) and against rear pulley.

    IMPORTANT: When installing front pulley (C), make sure that belt remains loose and is not pinched between pulleys.

    Clean mating surfaces of front pulley and shaft.

16. Install front pulley (C).

17. Hold front drive pulley and tighten cap screws (D) to specification.

    Item	Measurement	Specification
    Drive Pulley-to-Drive Cap Screw	Torque	37 N·m (27 lb.-ft.)

18. Remove cap screw and install vent adapter, then reinstall cap screw to original position.

    Item	Measurement	Specification
    Vent Adapter	Torque	24 N·m (212 lb.-in.)
    Vent Cap Screw	Torque	13 N·m (115 lb.-in.)

19. NOTE: Bleed screw must be closed for proper tension to be applied to belt once tractor is started.

    Close bleed screw and tighten to specification and tighten nut to make sure that it is closed and belt is loose between pulleys.

    Item	Measurement	Specification
    Bleed Screw	Torque	25 N·m (221 lb.-in.)
    Jam Nut	Torque	25 N·m (221 lb.-in.)

20. Install diverter panel and right-hand side front shield and torque to specification.

    Item	Measurement	Specification
    Diverter Panel Cap Screw	Torque	20 N·m (177 lb.-in.)

21. NOTE: Starting engine with belt loose between pulleys allows belt to climb out of groove between pulleys. Belt will correctly position itself within a few seconds after engine is started.

    Start engine and run at idle for 15 seconds. Turn off engine.

22. Remove right-hand side front shield and make sure that belt is correctly positioned between pulleys.

    CAUTION: Keep hands away from exposed fan blades. Blades have sharp edges which may result in personal injury.

23. Install right-hand front side shield.
