Transmission, Hydraulic, and Gear Case Oil

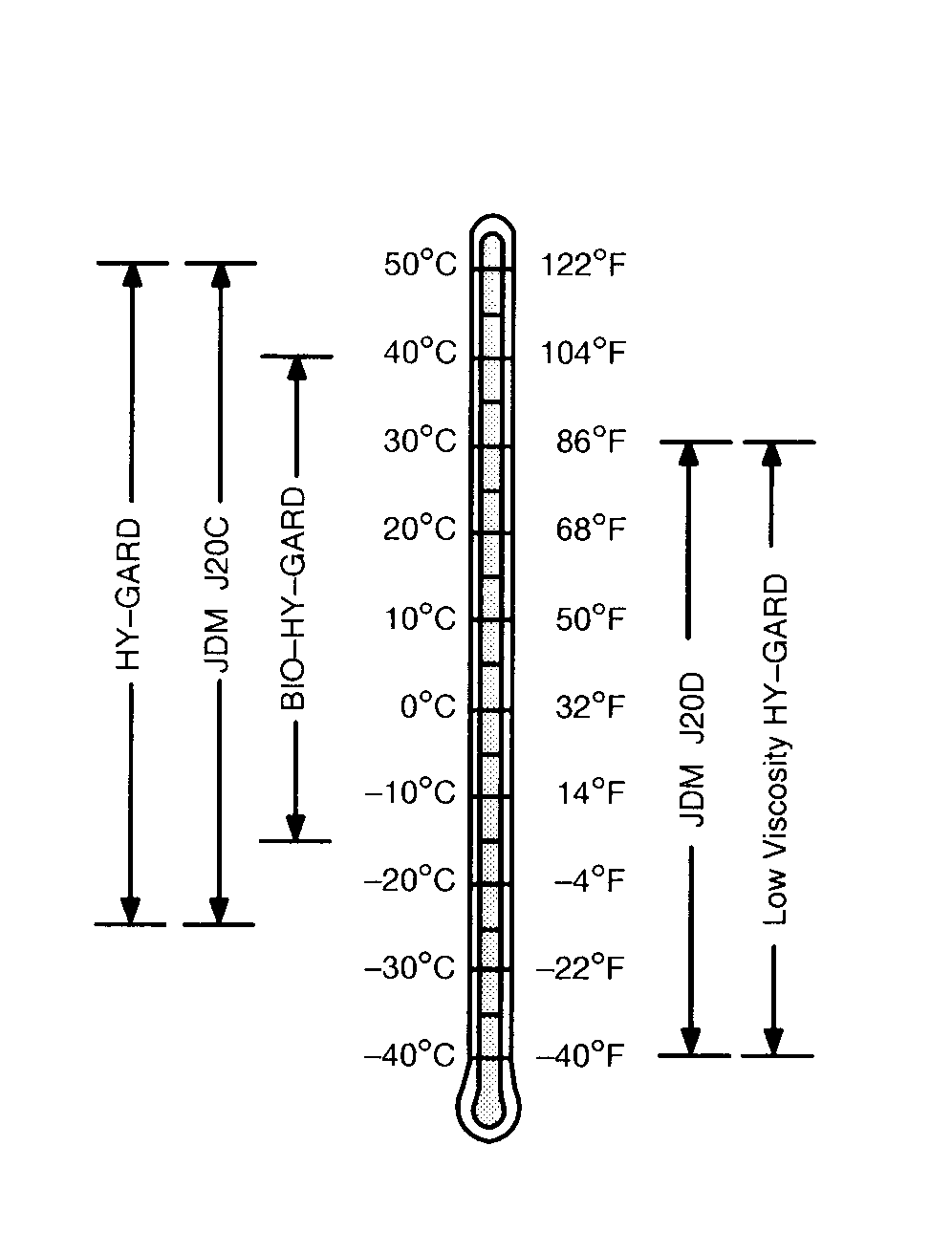

TS1651
TS1651-UN-14MAR96

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

  • John Deere HY-GARD ™
  • John Deere Low Viscosity HY-GARD ™

Other oils may be used if they meet one of the following:

  • John Deere Standard JDM J20C
  • John Deere Standard JDM J20D

Use John Deere BIO-HY-GARD™ oil when a biodegradable fluid is required.1

HY-GARD is a trademark of Deere & Company.
BIO-HY-GARD is a trademark of Deere & Company
1 BIO-HY-GARD meets or exceeds the minimum biodegradability of 80% within 21 days according to CEC-L-33-T-82 test method. BIO-HY-GARD should not be mixed with mineral oils, because this reduces the biodegradability and makes proper oil recycling impossible.

DX,OIL1-19-20031107
