Setting Country, Language, And Units

1. Select Menu button.

2. Select Display.


   RXA0098156-UN-07NOV08

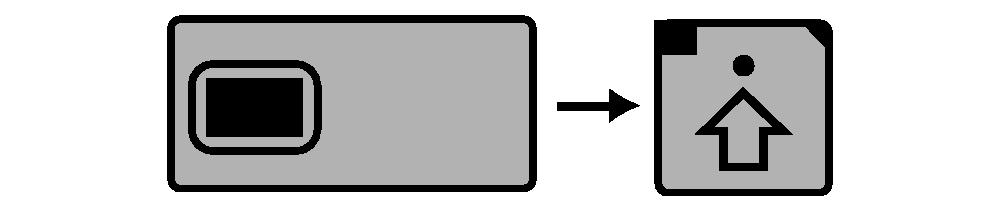

   CommandARM™ Menu Button


   RXA0103914-UN-14JUL10

---




3. Select Advanced Settings softkey.

4. At the Display Settings Regional page, on the first line select country/region tractor is currently used in. Listed below are countries/region that may be selected:

   Argentina	Finland	Portugal
   Austria	Germany	Romania
   Australia & New Zealand	Greece	Russia
   Belgium	Hungary	Slovakia
   Bulgaria	Iceland	South Africa
   Brazil	Italy	Sweden
   Canada	Latin America	Switzerland
   Czech Republic	Latvia	Turkey
   Croatia	Lithuania	Ukraine
   Denmark	Netherlands	United Kingdom
   Estonia	Norway	USA
   France	Poland

5. Selecting Units Advanced Settings Box, immediately after the Units drop down box on line four, gives the option to change between either US, Imperial, or metric units for all the lines by selecting this single check box.

   OR

6. On the second line in drop down box, select primary operator’s language.

7. On the third line in drop down box, select numeric format desired. i.e. U.S. or metric.

8. On the fourth line in drop down box, select units required either U.S. or metric.

9. On the fifth line in drop down box, select date format desired.

10. In check box at the bottom of the page, select 24 hour clock check box to change to 24 hour clock or leave unchecked for 12 hour clock.

11. Selecting Units Advanced Settings Box, immediately after the Units drop down box on line four, gives the option to change between either U.S., Imperial, or metric units for all the lines by selecting this single check box.
