Setting System Time

NOTE:

RXA0098156-UN-07NOV08

CommandARM™ Menu Button

RXA0103929-UN-24JUL09

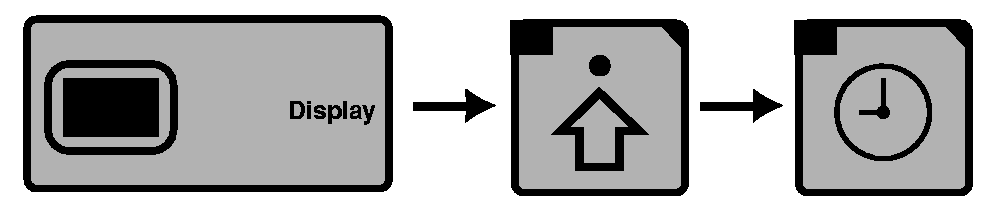

Display → Advance Settings → Date/Time

1. Select Menu button.

2. Select Display.

3. Select Advanced Settings softkey.

4. Select Date/Time softkey.

5. When Display — Settings — Time/Date page displays, if GPS Time and Date check box on the first line is unchecked, select each of the blocks on the next two lines and enter appropriate:

   • Month
   • Day
   • Year
   • Hour
   • Minute
   • AM or PM As Appropriate



   If GPS Time and Date check box is checked the previous blocks in the list above cannot be changed.

   • Select and place appropriate time in Time Zone box.

     Argentina -2	Croatia +1	Russia
     Austria +1	Denmark +1	Moscow +3
     Australia	Germany +1	Samara +4
     Brisbane +10	Estonia +2	Orenburg +5
     Adelaide +10	France 0	Omsk +6
     Perth + 9	Finland +2	Krasnoyarsk +7
     Melbourne +11	Greece +2	Switzerland +1
     Bulgaria +2	Iceland 0	Slovakia +1
     Brazil	Italy +1	South Africa +2
     Sao Paulo -3	Hungary +1	Sweden +1
     Mato Grosso -4	Central America + 5	United Kingdom 0
     Canada	Latvia +2	Ukraine +2
     Vancouver -7	Lithuania +2	Turkey +2
     Calgary -6	Netherlands +1	USA
     Winnipeg -5	Norway +1	Los Angeles - 7
     Toronto -4	Poland +1	Denver - 6
     Halifax -3	Portugal 0	Chicago -5
     Czech Republic +1	Romania +2	Atlanta -4

   • Select month.
   • Select day.
   • Select year.
   • Select hour.
   • Select minute.
   • Select either AM or PM.



6. At the bottom of the page, in Daylight Saving Time check box , place check if daylight saving time is used in your country/region.
