Message Center

RXA0098156
RXA0098156-UN-07NOV08

CommandARM™ Menu Button

RXA0099746
RXA0099746-UN-14JUL10

Message Center

RXA0106008
RXA0106008-UN-14JUL10

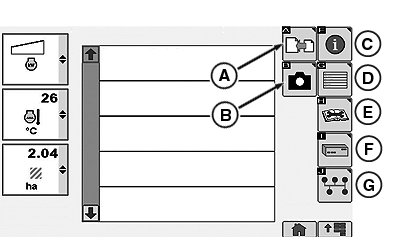

Message Center Page

Message Center is used to access detailed diagnostic information and to manually initiate reprogramming sessions.

Message Center can also display detailed diagnostic information such as Control Unit Information and CAN Bus Information, used by your John Deere ™ Dealer for advanced troubleshooting.

Softkeys are listed below:

  • A — Message Center Reprogramming Page
  • B — Transfer Debug Files
  • C — Messages
  • D — Diagnostic Addresses
  • E — Trouble Codes
  • F — Control Unit Information
  • G — Bus Information

CommandARM is a trademark of Deere & Company
John Deere is a trademark of Deere & Company

OURX935,000001B-19-20100811
