Connecting AutoTrac™ Assisted Steering System (If Equipped)

RXA0109998

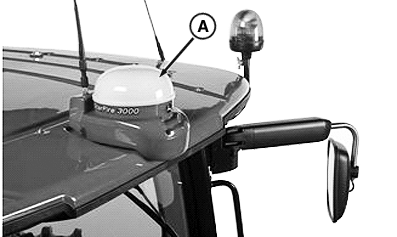

RXA0109998-UN-20AUG10

StarFire™ receiver

RXA0110000

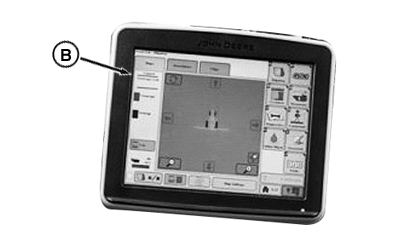

RXA0110000-UN-20AUG10

GreenStar Display 2630

RXA0100708

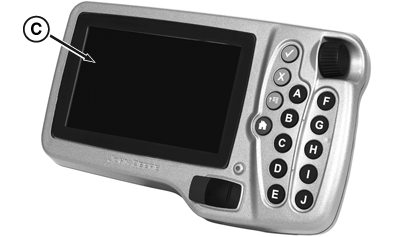

RXA0100708-UN-26FEB09

GreenStar Display 1800

RXA0084306

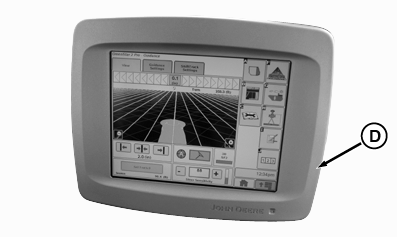

RXA0084306-UN-26SEP05

GreenStar Display 2600

A - Position Receiver

B - GreenStar Display 2630

C - GreenStar Display 1800

D - GreenStar Display 2600

NOTE: Electro-hydraulic steering is required for AutoTrac to function.

Refer to AutoTrac Operator’s Manual for detailed instructions.

  • AutoTrac system utilizes StarFire position receiver (A) and GreenStar™ Display 2630 (B)1 to assist operator in steering tractor.
  • Operator must turn vehicle at the end of each pass and to go around any field obstacles. Steering control is obtained by simply turning steering wheel.

NOTE: See your John Deere™ dealer for compatible adapter harnesses.

AutoTrac is a trademark of Deere & Company
StarFire is a trademark of Deere & Company
GreenStar is a trademark of Deere & Company
John Deere is a trademark of Deere & Company
1 GreenStar Display 1800 (C) OR 2600 (D) are compatible

OURX935,0000048-19-20100916
