Installing GreenStar™ System Components

IMPORTANT: This vehicle employs one or more CAN bus networks. Connecting unapproved devices to vehicle network (s) may cause machine to degrade in performance or fail to perform properly. Further, unapproved devices that attempt control of tractor functions should not be connected to implement network (ISOBUS).

RXA0104665
RXA0104665-UN-10SEP09

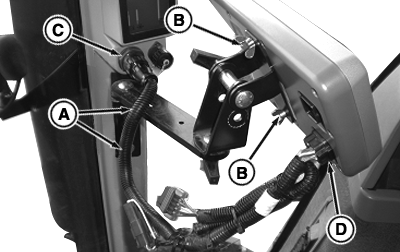

Attach Bracket To Corner Post Mount

RXA0109995
RXA0109995-UN-20AUG10

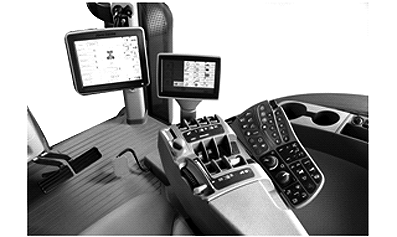

GreenStar Display Front View

RXA0109999
RXA0109999-UN-20AUG10

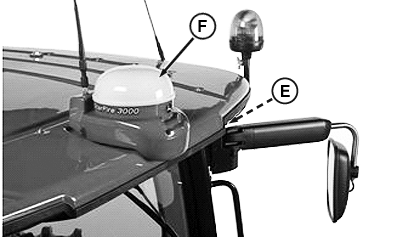

Connect StarFire Receiver

A - Corner Post Mounts

B - Wing Nuts (2 Used)

C - GreenStar Corner Post Connector

D - GreenStar Display Connector

E - StarFire™ Receiver Connector

F - StarFire Receiver

  1. Attach bracket to corner post mounts (A).

  2. Attach display to bracket using wing nuts (B) (provided with display).

  3. Attach harness to corner post connector (C) and lower GreenStar display connector (D) on back of the display.

  4. Position display so that it is comfortable to reach and does not obstruct your view.

  5. Connect StarFire™ receiver connector (E) to Starfire receiver (F).

    NOTE: See your John Deere™ dealer for compatible adapter harnesses.

GreenStar is a trademark of Deere & Company
StarFire is a trademark of Deere & Company
John Deere is a trademark of Deere & Company

OURX935,0000169-19-20101118
