Changing World Tuner Settings—Deluxe Radio

1. Turn tractor key switch on and push radio Power button (A) to turn radio off.


   RXA0100930-UN-06MAR09

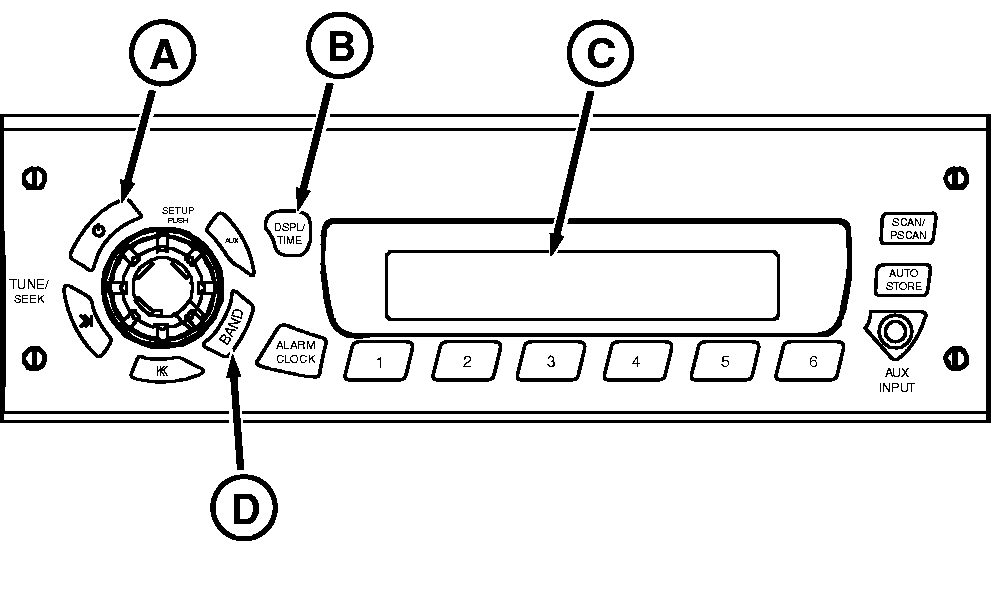

   Deluxe Radio

   A - Power Button

   B - DISP/TIME Button

   C - Display

   D - Band Button

---




2. Push and hold DISP/Time Button (B) for 2 or 3 seconds until time on radio display (C) flashes.

3. Promptly push BAND Button (D) to display regions for frequency selection.

4. Each time BAND Button is pushed, radio display cycles to next region.

5. When desired region is displayed for correct frequency band, press and hold BAND Button until display changes and the time is displayed, then release BAND Button.
