Replacing Dome Light Bulb

RXA0099130-UN-19SEP08

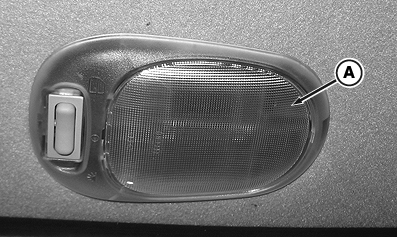

Remove Cover

RXA0099128-UN-19SEP08

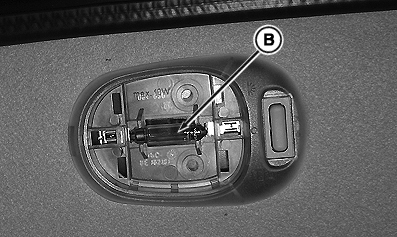

Remove And Replace Bulb

A - Cover

B - Light Bulb

1. Remove lens cover (A).

2. To remove light bulb (B), grasp bulb and pull straight down.

3. Gently push new bulb into fixture until it seats.

4. Re-install cover.
