Cleaning Fuel Tank Vent Filter

RXA0110047
RXA0110047-UN-26AUG10

Remove Cap Screws And Lift Off Back Panel

RXA0109380
RXA0109380-UN-16AUG10

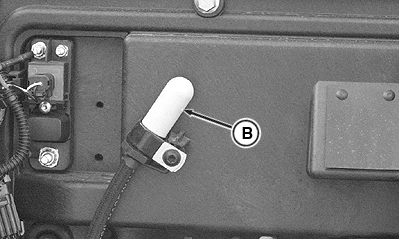

Remove Fuel Tank Vent Filter

A - Cap Screws

B - Fuel Tank Vent Filter

Remove four cap screws (A) and lift off cab back panel.

Fuel tank vent filter is located under back panel on tractor left-side side. Remove fuel tank vent filter (B) and clean in soapy detergent solution.

Blow dry with compressed air and replace.

OURX935,0000C4F-19-20100921
