Replacing Cab Air Filters

RXA0099137-UN-19SEP08

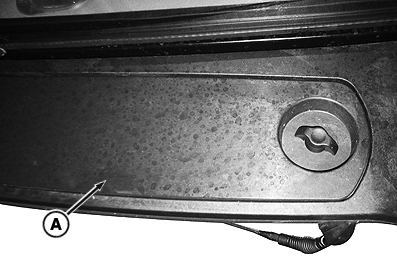

Let Cover Swing By Turning Knob

RXA0099139-UN-19SEP08

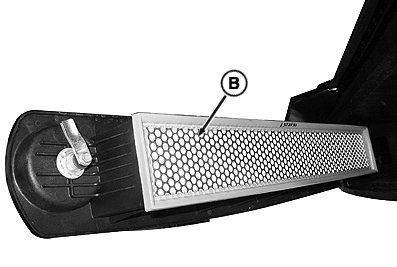

Remove Filter

RXA0099699-UN-04NOV08

A - Cover

B - Knob

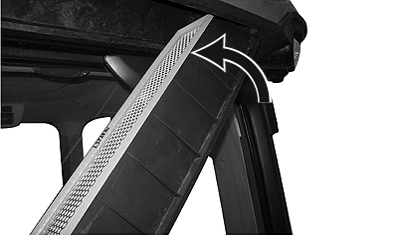

1. Support cover then turn knob allowing cover (A) to swing down.

2. Remove old filter (B).

3. Inspect condition of filter.

4. Replace filter annually or sooner when plugged or damaged.

   NOTE: Using a clean cloth, wipe down inside and outside filter cover before replacing old filter or installing new filter.

5. If required, install new filter.

   NOTE: Filter cover has three positions; open (A), latched (B) and locked (C).


   RXA0099848-UN-26NOV08

   Air Filter Cover

---




6. Close cover and turn knob 180° so that latch is locked.
