Mounting StarFire™ Receiver

CAUTION:

RXA0107026-UN-31MAR10

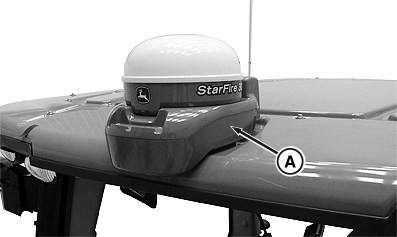

StarFire Receiver Mounted on StarFire Receiver Bracket

RXA0107027-UN-31MAR10

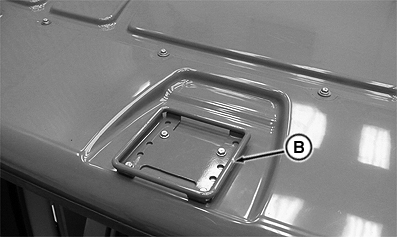

StarFire Receiver Bracket

A - StarFire Receiver

B - StarFire Receiver Bracket

Falling while installing or removing a global positioning receiver can cause serious injury. Use a ladder or platform to easily reach a mounting location.

Use sturdy and secure footholds and hand holds. Do not install or remove the receiver in wet or icy conditions.

Mount StarFire™ receiver (A) on StarFire receiver bracket (B).

NOTE: Refer to your John Deere™ dealer or to StarFire receiver installation instructions for further compatibility.

See your John Deere dealer for compatible adapter harnesses.
