Executing Programmed Sequence

NOTE: The tractor can not be in park while executing a sequence. Tractor drive lever must be in a forward position when executing set speeds, gears, or Automatic Power Shift (APS). Tractor must be driven at a speed of at least 0.5 km/h (0.31 mph).

iTEC indicator must show that iTEC is turned ON. iTEC cannot physically ”turn on” relevant switches. Before sequences are performed that include selective control valve functions, the relevant levers must be in the neutral position.

1. Select iTEC.


   RXA0110772-UN-09SEP10

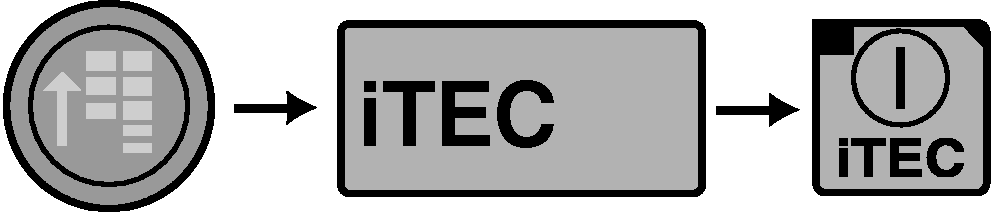

   CommandCenter™ Main Menu → iTEC → iTEC On


   RXA0109991-UN-20AUG10

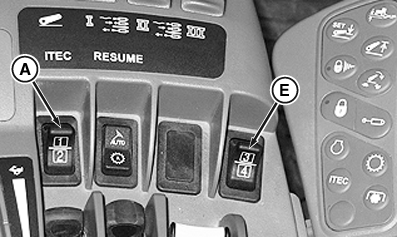

   CommandArm


   RXA0109993-UN-20AUG10

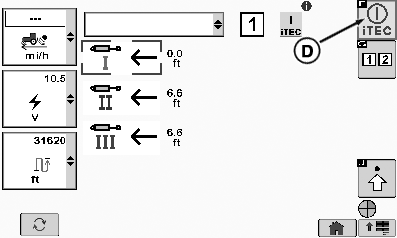

   iTEC Operation Page


   RXA0109994-UN-24AUG10

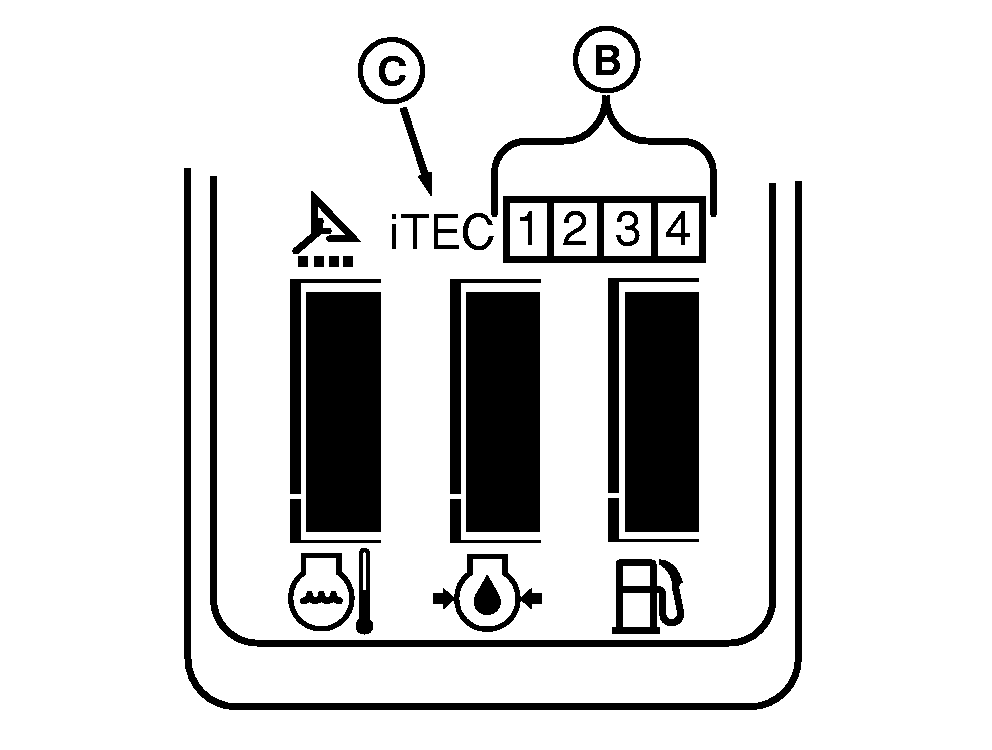

   Corner Post Display

   A - Sequence Switch (1 and 2)

   B - Sequence Number

   C - iTEC

   D - iTEC On/Off Softkey

   E - Sequence Switch (3 and 4

---




2. Select iTEC ON/OFF softkey.

3. Select CommandARM™ sequence switch¹ (A).

4. On the corner post display, the executing sequence number (B) and iTEC are both illuminated.

5. On the iTEC Page the iTEC status indicator changes and the frame is showing the function that gets executed next.

6. After a sequence has ended, the display is changing to the ’next’ sequence. A manually intervention can be made in a running sequence at any time.

   NOTE: To abort a sequence immediately, change to a different sequence by selecting switch, or select iTEC ON/OFF Softkey (D) to turn off sequence.

   Manual interaction of the function during sequence execution will cause that function not to execute. Instead, the function in sequence is overridden by operator commands (manual interaction). The error/service icon will indicate this on the function.

   If there is no manual intervention when an abort occurs, commanded functions may be cancelled. For example, on the hitch or SCV hydraulic flow stops.
