AUTO Exhaust Filter Cleaning Mode
AUTO Mode allows the Exhaust Filter System to intelligently perform exhaust filter cleaning as required. Cornerpost Display Indicators and CommandCenter™ prompts will provide the operator information related to exhaust filter system activity.

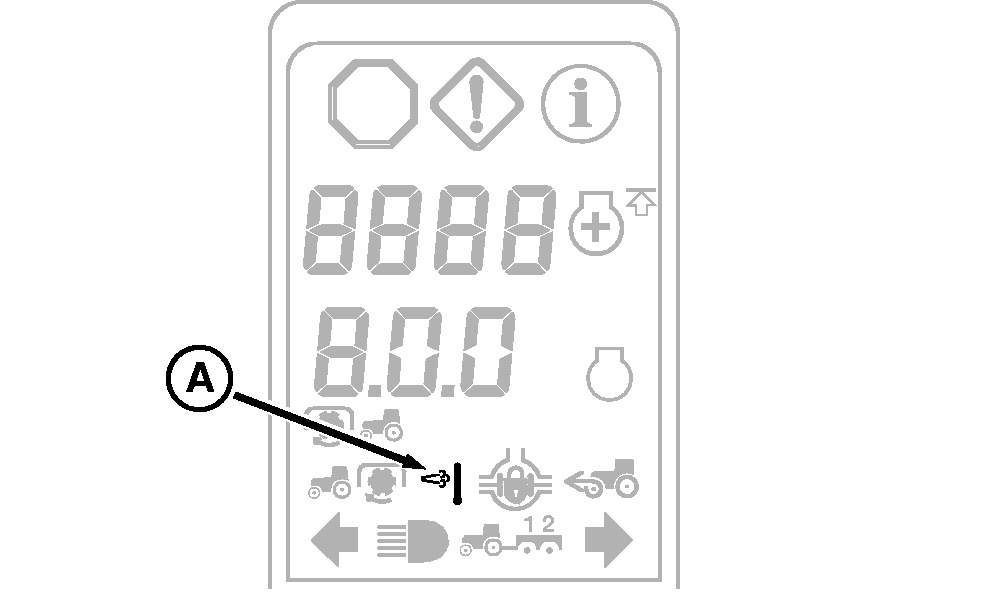

RXA0108859-UN-19JUL10
A - Exhaust Filter Cleaning Indicator
Exhaust Filter Cleaning Indicator (A) will illuminate when the exhaust filter system is actively performing exhaust filter cleaning.IMPORTANT: During exhaust filter cleaning operation, there may be higher exhaust gas temperatures and the engine may operate at elevated idle.
Exhaust Filter Restricted—Depending on operating conditions, the Exhaust Filter System may request a change in operation. CommandCenter™ prompts will recommend operational changes.
CommandCenter is a trademark of Deere & Company | OURX935,0001257-19-20100915 |
