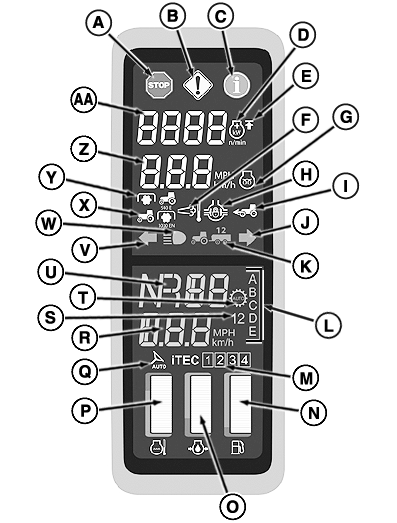

Corner Post Display

RXA0112375-UN-10DEC10

Corner Post Display

A - Stop Indicator

B - Service Alert Indicator

C - Information Indicator

D - Power Increase Indicator

E - FieldCruise™ Indicator

F - Exhaust Filter Cleaning Indicator

G - Engine Preheat Indicator

H - Differential Lock Indicator

I - MFWD Indicator

J - Right Turn Indicator

K - Trailer Indicator (If Equipped)

L - Gear Range Indicators

M - iTEC ™ Sequence Indicator

N - Fuel Level Gauge

O - Engine Oil Pressure Gauge

P - Coolant Temperature Gauge

Q - AutoTrac™ Indicator

R - Set Speed¹

S - IVT™/AutoPowr™ Forward Speed Band Indicator

T - Automatic Shifting Indicator

U - Current Gear/Range¹

V - Left Turn Indicator

W - High Beam Indicator

X - Rear PTO Indicator

Y - Front PTO Indicator (If Equipped)

Z - Vehicle Ground Speed

AA - Tachometer
