CommandARM™

RXA0106792
RXA0106792-UN-10MAR10

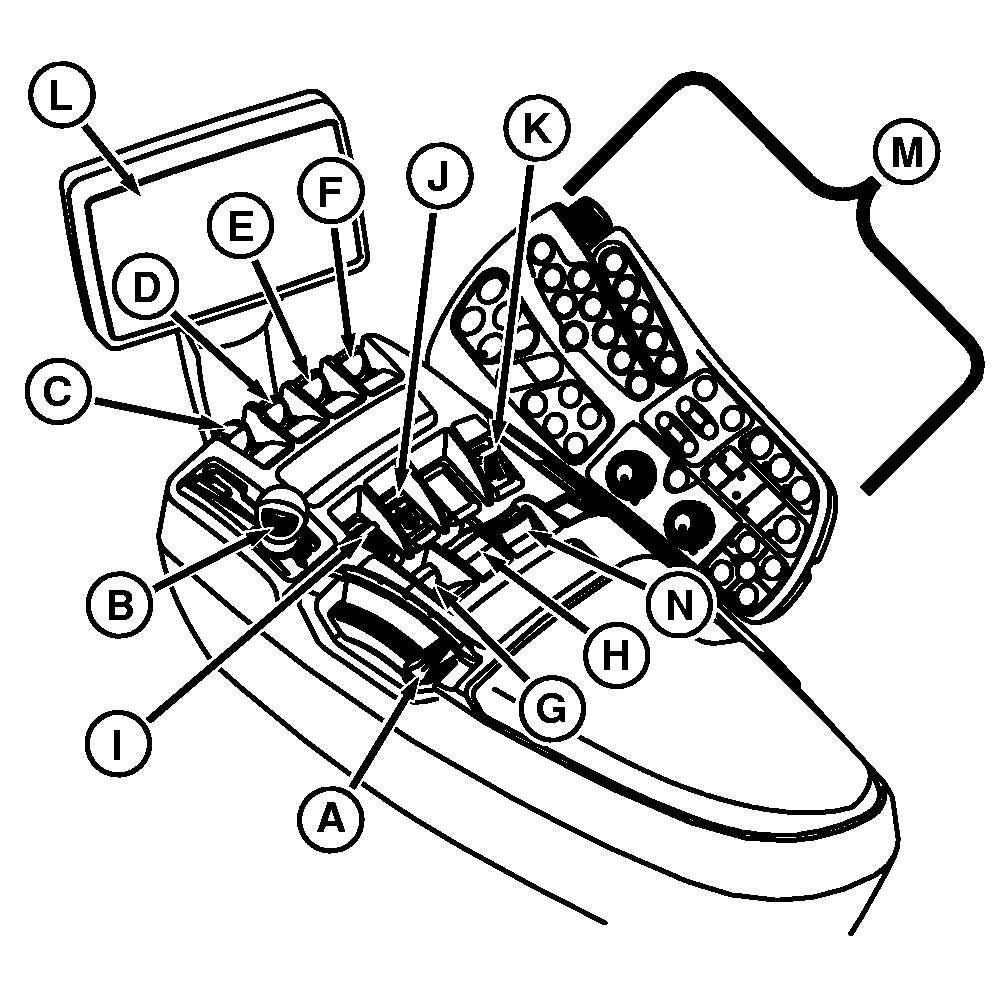

IVT™/AutoPowr™, CommandARM™ Controls

A - Engine Speed Control/Hand Throttle

B - Speed Control Lever 1

C - Hitch Command Lever

D - SCV I Control Lever

E - SCV II Control Lever

F - SCV III Control Lever

G - SCV IV Control Lever (If Equipped)

H - SCV V Control Lever (If Equipped)

I - iTEC™ Sequence Switch 1 and 2

J - AutoTrac™ Resume Switch

K - iTEC™ Sequence Switch 3 and 4 (optional)2

L - CommandCenter™

M - CommandARM™ Controls

N - Rear PTO Switch



iTEC is a trademark of Deere & Company

AutoTrac is a trademark of Deere & Company

CommandCenter is a trademark of Deere & Company
1 For IVT™/AutoPowr™ Equipped Tractors
2 Field Installed Kit (If Equipped)

ZE59858,000038C-19-20110221
