CommandARM™ Controls

RXA0099690-UN-31OCT08

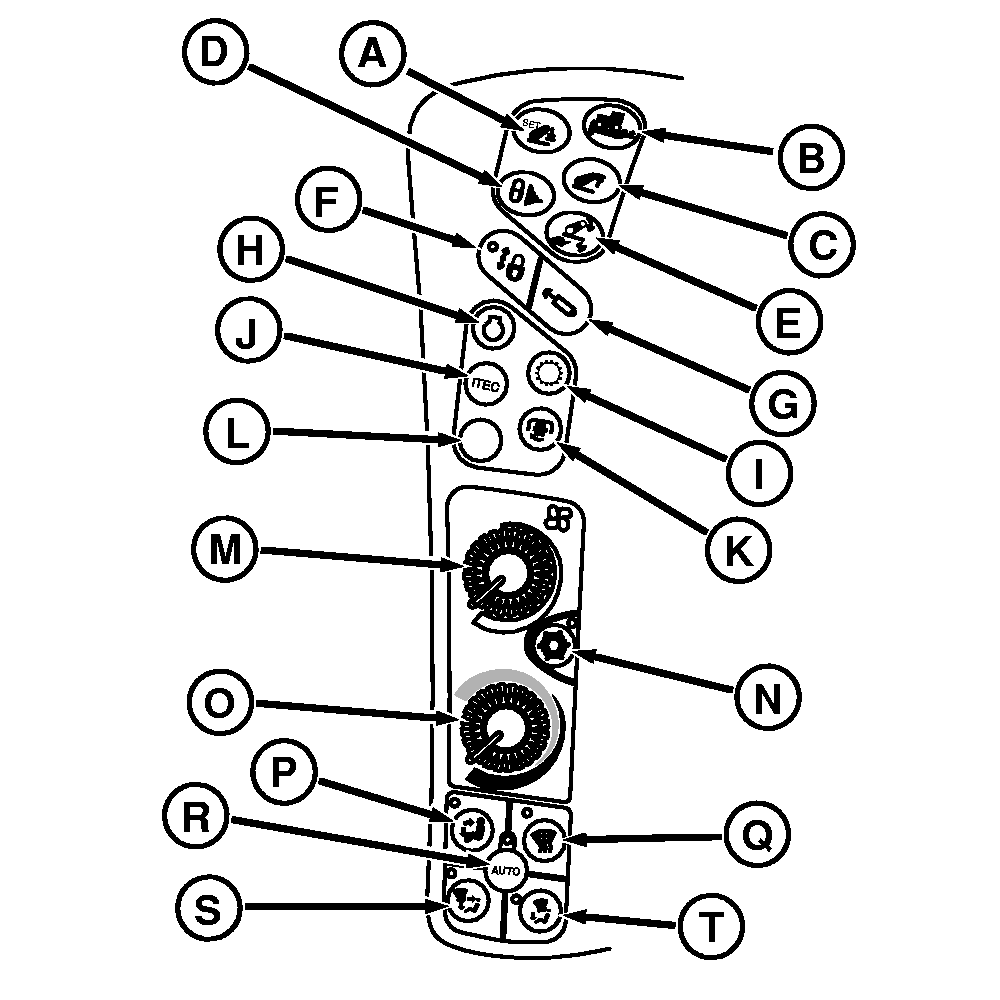

CommandARM™ Controls — Left Side

A - Hitch Lower Limit

B - Load Depth Settings

C - Hitch Upper Limit

D - Hitch Transport Lock/Dampening

E - Hitch Rate Of Drop

F - SCV Transport Lock

G - SCV Settings

H - Engine Settings

I - Transmission Settings

J - iTEC™ Settings

K - Rear PTO Settings

L - Not Used

M - Fan Speed Control*

N - Air Conditioner Button*

O - Temperature Control Knob*

P - Cab And Floor Vent*

Q - Defrost*

R - ClimaTrak™ *

S - Defrost, Cab And Floor Vent*

T - Windshield And Floor Vent*

Controls indicated with an asterisk (*) are installed only on ClimaTrak™ equipped tractors.

RXA0112238-UN-07JAN11

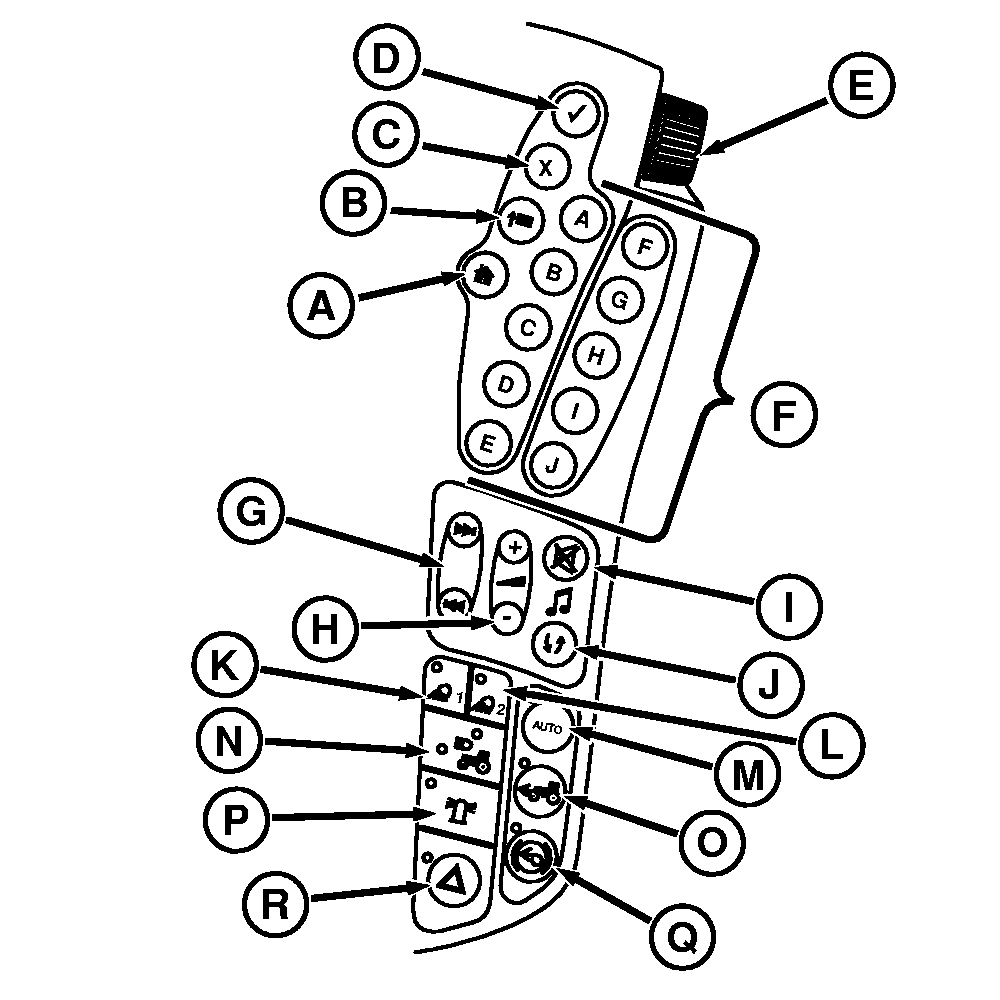

CommandARM™ Controls—Right Side

A - Home Button

B - Menu Button

C - Cancel Button

D - Confirm Button

E - Thumb Wheel

F - Softkeys

G - Radio Preset/Track Control

H - Radio Volume

I - Radio Mute

J - Radio Source

K - Field Lights 1 Selection

L - Field Lights 2 Selection

M - MFWD AUTO

N - Road/Loader Lights

O - MFWD ON

P - Beacon Light

Q - Brake Assist

R - Emergency Flashers
