Navigating the CommandCenter™—Read Me First

NOTE:

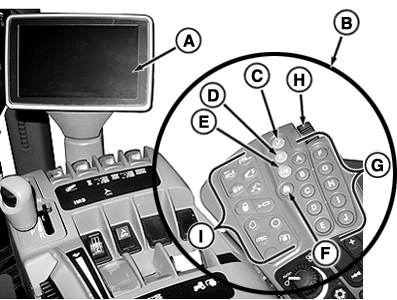

RXA0099737-UN-14JUL10

CommandARM™ with CommandARM™ Controls and CommandCenter™

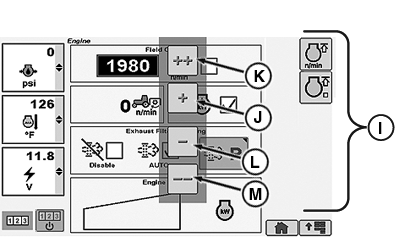

RXA0107356-UN-16APR10

Softkeys

The CommandCenter™ (A) allows operator to view selected pages required to operate tractor.

There are three methods of navigating through CommandCenter™ pages:

1. Rotate CommandARM™ controls (B) thumb wheel (H) to a specific box or softkey (I) and press Confirm button (C) to direct tractor to perform a function. Press Cancel button (D) to void a command.
2. NOTE: Softkeys, ”A” through ”J” (G) correlate to softkeys (I) on CommandCenter™ pages.
   Use softkeys to navigate through system to a page, then use thumb wheel to specific portion of a page.
3. For tractors equipped with touch screen CommandCenter™, touch softkeys, buttons, or icons to select. To increase or decrease adjustments select increase/decrease value buttons.

There are various input fields and buttons that allow the operator to navigate through pages to direct tractor functions.

Primary CommandARM™ Controls navigational tools listed below:

A—CommandCenter™ allows operator to monitor and receive immediate visual feed back on all monitored functions associated with tractor operations.

B—CommandARM™ Controls is a keypad made up of buttons, shortcut keys, and softkeys allowing operator to manage tractor functions.

C—Confirm Button used to select highlighted item.

D—Cancel Button cancels or deselects action previously selected.

E—Menu Button returns operator to the CommandCenter™ Menu.

F—Home Button returns operator to home page.

G—Softkey Buttons activate softkeys.

H—Thumb Wheel allows operator to perform specific functions such as changing information in input boxes. Rotating thumb wheel forward raises input box values. Rotating thumb wheel rearward lowers input box values.

I––Softkeys allows operator quick access to a specific page or curser placement on page.

J––M Increase/Decrease Value Buttons For tractors equipped with touch screen, allows operator to make setting adjustments touching appropriate button. The ++ and - - allows operator to make larger incremental changes when adjusting than touching + or - buttons. For areas that require tighter adjustments, such as the rear hitch, only the + and - buttons are available.
