Shortcut Buttons

RXA0104070
RXA0104070-UN-24JUL09

Shortcut Buttons

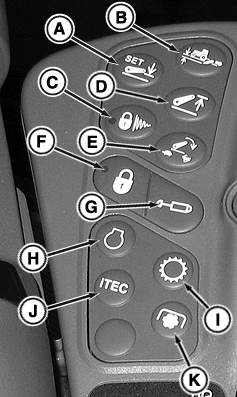

Listed below are CommandARM™ controls shortcut buttons that allow operator to go directly to a specific task.

  • A—Hitch Lower Limit
  • B—Hitch Load Depth Settings
  • C—Hitch Transport Lock/Dampening
  • D—Hitch Upper Limit
  • E—Hitch Drop Rate
  • F—SCV Transport Lock
  • G—SCV Settings
  • H—Engine
  • I—Transmission
  • J—iTEC Settings
  • K—PTO Settings


CommandARM is a trademark of Deere & Company

iTEC is a trademark of Deere & Company

ZE59858,0000393-19-20101220
