CommandCenter™ Left Region

Left region boxes and their meanings are listed below.

RXA0107361-UN-14MAY10

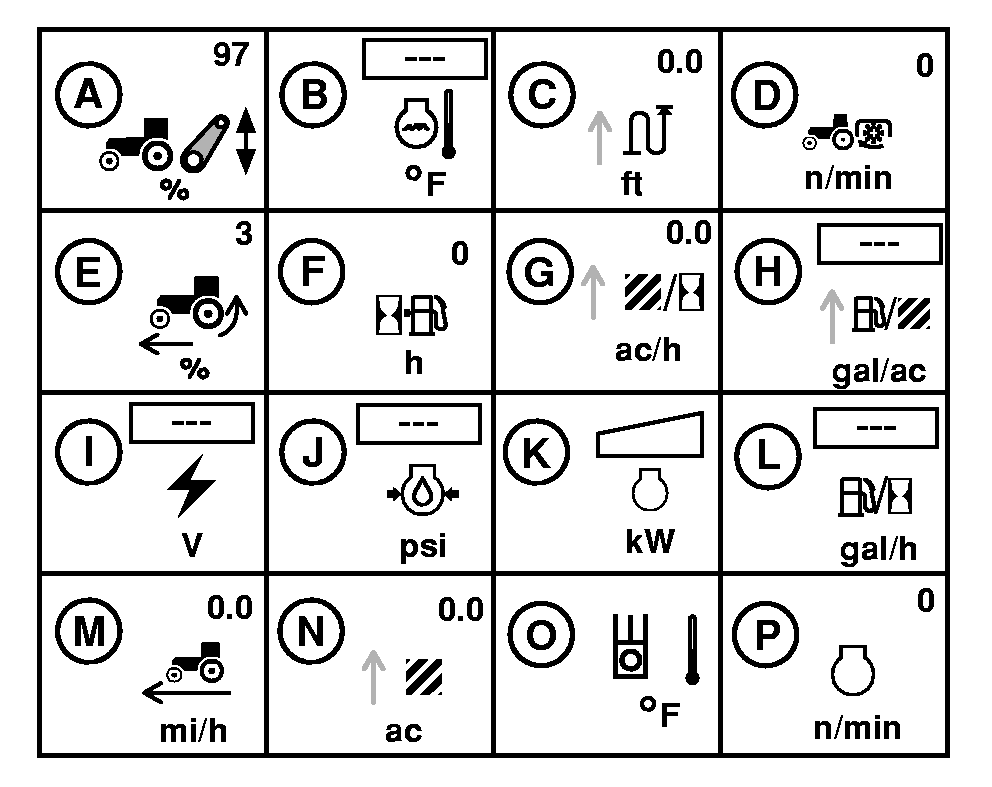

Listing of Left Region Boxes

A—Rear Hitch Position - Displays current rear hitch position.

B—Engine Coolant Temp - Engine coolant temperature in °C or °F.

C—Distance Counter- Accumulated distance the tractor has traveled displayed in meters or feet.

D—Rear PTO Speed - Displays rear PTO speed in rpm.

E—% Slip - (Requires Radar) Displays current wheel slippage as a percent of ground speed compared to the true ground speed.

F—Fuel Remaining - Estimated time until fuel tank is empty.

G—Area Per Hour - Area covered per hour. A number based on current implement width and speed traveled over time.

H—Fuel Consumption Per Area - The amount of fuel used is accumulated over time based on the last area counter reset.

I—System Volts - Supply system voltage.

J—Engine Oil Pressure - Engine oil pressure in kPa or psi.

K—Power Display- Engine power using a bar graph display.

L—Fuel Consumption Per Hour - Displays liters (gallons) consumed per hour.

M—Wheel (Ground) Speed - Calibrated ground speed as measured at the axle.

N—Total Area Covered - Total area covered displayed in hectares or acres.

O—Hydraulic Temperature - Hydraulic oil temperature.

P—Engine rpm - Engine speed in revolutions per minute.
