Display Control Test
RXA0109175-UN-05AUG10

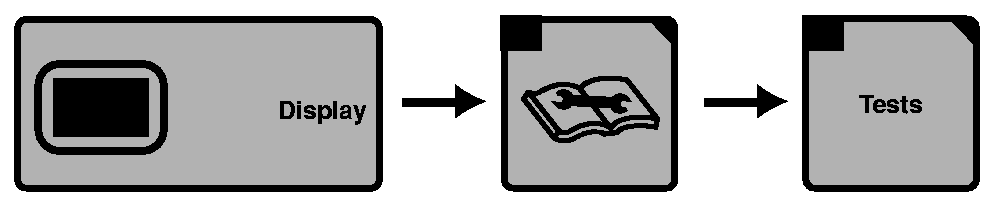

Display → Display Diagnostics→Test
RXA0106107-UN-20AUG10
RXA0106632-UN-11AUG10
Display Control Test
RXA0106634-UN-03MAR10
Touchscreen Test
A - Display Control Test
B - Touchscreen Test
C - Touchscreen Calibration
D - Shortcut And Softkey Buttons
E - Test Pattern
F - Done
Select Menu button.
Select Display.
Select Display Diagnostics.
Select Tests softkey.
Select Display Control Test box (A).

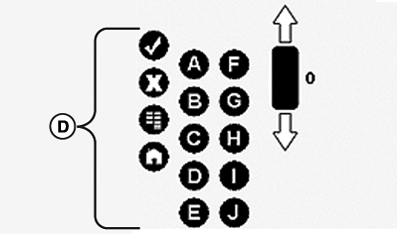

At Display Control Test page, press any CommandARM™ softkey and verify the corresponding button (D) on the page is highlighted.
Select Touchscreen Test box (B), a box appears allowing you to select Done box (F)

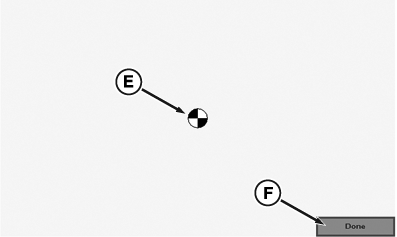

Select Touchscreen Calibration box (C), page appears with test pattern (E).
Select Done box (F) when finished.
CommandARM is a trademark of Deere & Company | ZE59858,0000399-19-20101220 |
