Distance Counter
RXA0098156-UN-07NOV08

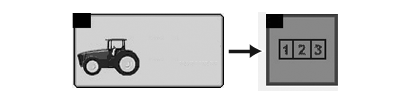

CommandARM™ Menu Button
RXA0113177-UN-11JAN11
Performance Monitor → Performance Monitor Totals
RXA0110778-UN-09SEP10

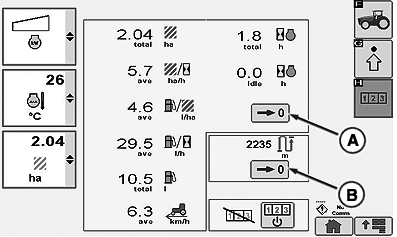

Performance Monitor Totals Page
A - Zero Area And Fuel Counter Button
B - Zero Distance Counter Button
Select Menu button.
Select Performance Monitor.
Select Performance Monitor Totals softkey.
To reset area counters or fuel counter, select Zero Area and Fuel Counter button (A).
To reset distance counter, select Zero Distance Counter Button (B).
CommandARM is a trademark of Deere & Company | ZE59858,00003A3-19-20110111 |
