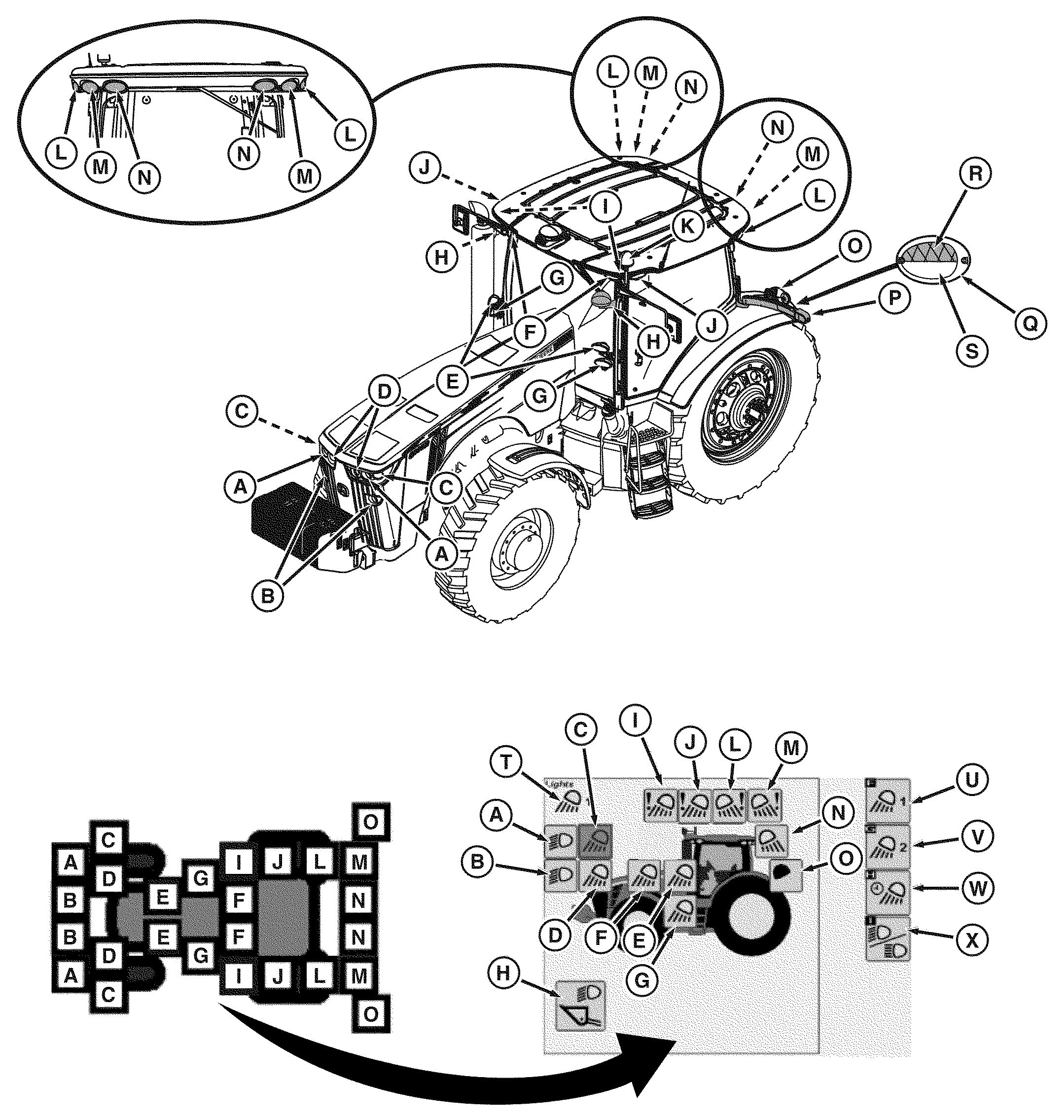

Light Identification

RXA0108264-UN-14FEB11

A - Road Lights (High Beam)

B - Road Lights (Low Beam)

C - Outer Hood Work Light

D - Inner Hood Work Light

E - Road Light on Belt Line/Amber Warning Light

F - Front Inner Roof Work Light

G - Work Light on Belt Line

H - Loader Light (If Equipped)

I - Front Outer Roof Work Light¹

J - Front Side Roof Work Light¹

K - Rotary Beacon Light (If Equipped)

L - Rear Side Roof Work Light¹

M - Rear Outer Roof Work Light¹

N - Rear Inner Roof Work Light

O - Rear Fender Work Light²

P - Extremity Light

Q - Rear Lights

R - Amber Lens

S - Red Lens

T - Indicator, Flood Light Position

U - Field Lights 1

V - Field Lights 2

W - Egress Lights

X - High/Low Beam

Lights are configured on CommandCenter™ light page. Road/Flood Lights (A through H) are configured ON by selecting that particular light. Selecting a particular light a second time will toggle it OFF. CommandARM™ controls actually turn lights on and off, see Configurable Lights in this section.
