Configurable Lights

CAUTION: Avoid injury or death caused by collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim Road Lights to low-beam for oncoming vehicles. Avoid using Flood Lights which could blind or confuse other drivers.

RXA0107022-UN-26MAR10

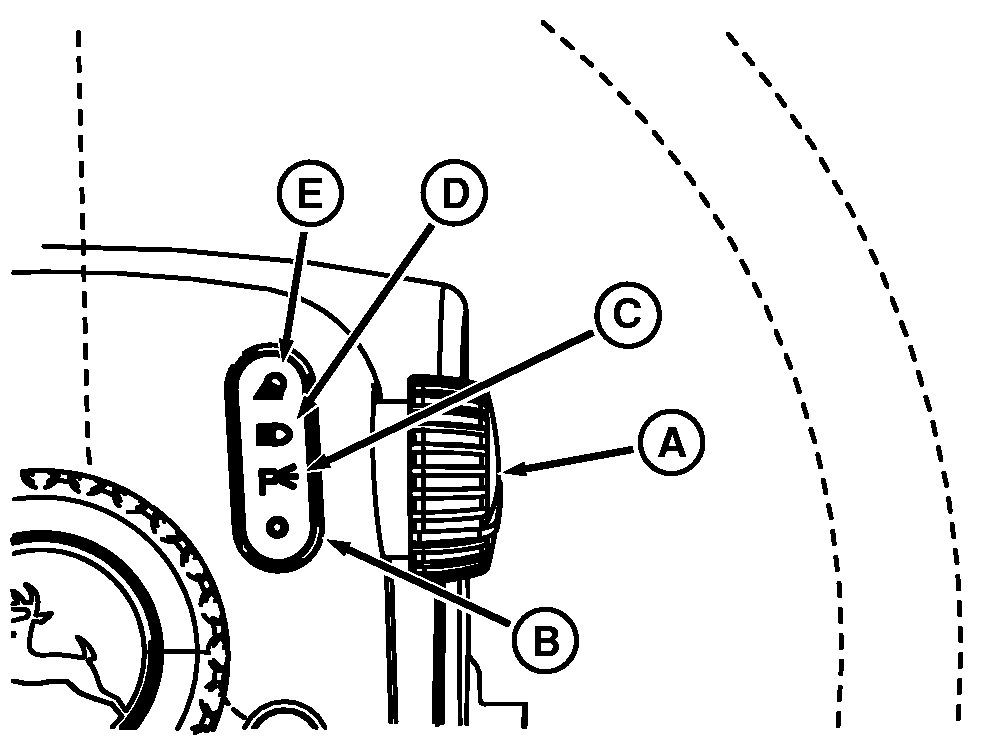

Steering Column Light Switch

RXA0106075-UN-18AUG10

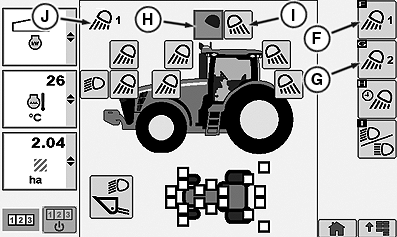

CommandCenter™ Lights Page

RXA0108263-UN-26JUN10

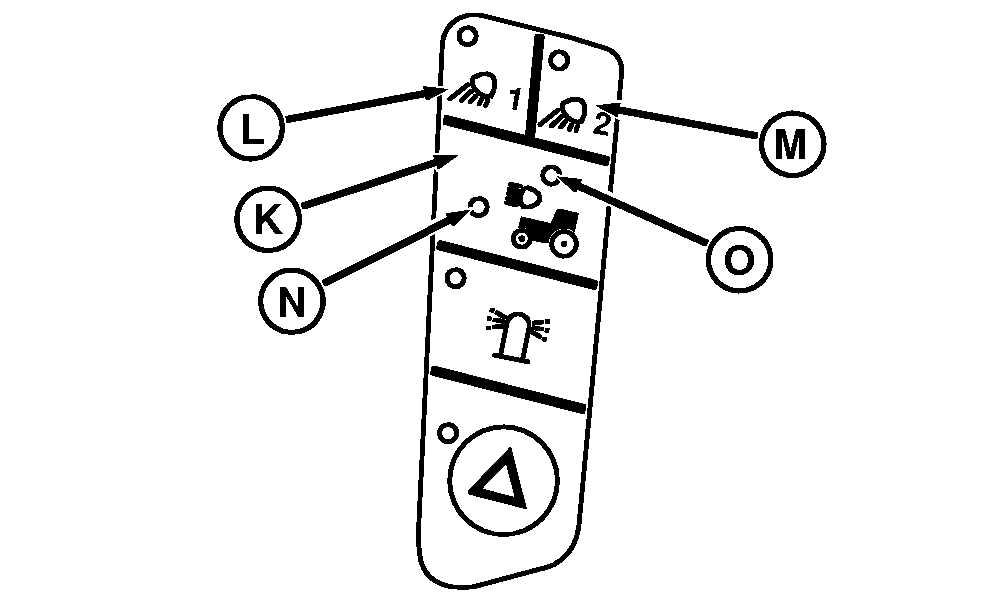

CommandARM™ Controls Field Lights Buttons

A - Selector Knob

B - OFF Position

C - Parking Lights Position

D - Road Lights Position

E - Flood Lights Position

F - Flood Lights 1 Softkey

G - Flood Lights 2 Softkey

H - Light Configured OFF

I - Light Configured ON

J - Flood Lights Position Indicator

K - Road Lights

L - Flood Lights 1

M - Flood Lights 2

N - Road Light Indicator

O - Loader Light Indicator

Selector knob (A) is in OFF position (B). Turn selector knob (A) forward to Parking Lights position (C) to turn on brake lights. Turn Selector knob forward to Road Lights position (D) to turn on either high beam or low beam road lights. Turn selector knob (A) forward to Flood Lights position (E) to turn on all Floods Lights previously configured at CommandCenter™ Light page.

When the steering column Selector knob is turned to Flood Lights (E), selecting Flood Lights 1 softkey (F) allows operator to configure which flood lights are ON (I) or OFF (H) for that application. Operator can toggle between Flood Lights 1 or Flood Lights 2 simply by pressing Flood Lights 1 button (L) or Flood Lights 2 button (M) respectively. Selecting Flood Lights 2 softkey (G) displays second option of flood lights. Verify flood lights configuration displayed by looking at Flood Lights position indicator (J) in the upper left corner of the CommandCenter™ Light page. While Flood Lights 1 or 2 (F or G) are ON, red tail lights will also be ON.

Light display shows for 10 seconds whenever light switch is changed to a programmable setting. If no changes are made, display returns to last screen shown. Light indicators change from black when configured OFF (H) to white when configured ON (I).

CommandARM™ controls indictor lights (N or O) indicate the status of Road Lights or Loader Lights.
