Hazard Lights and Extremity Warning Lights

RXA0086584-UN-09FEB06

Use Safety Lights and Devices

RXA0098436-UN-07JUL08

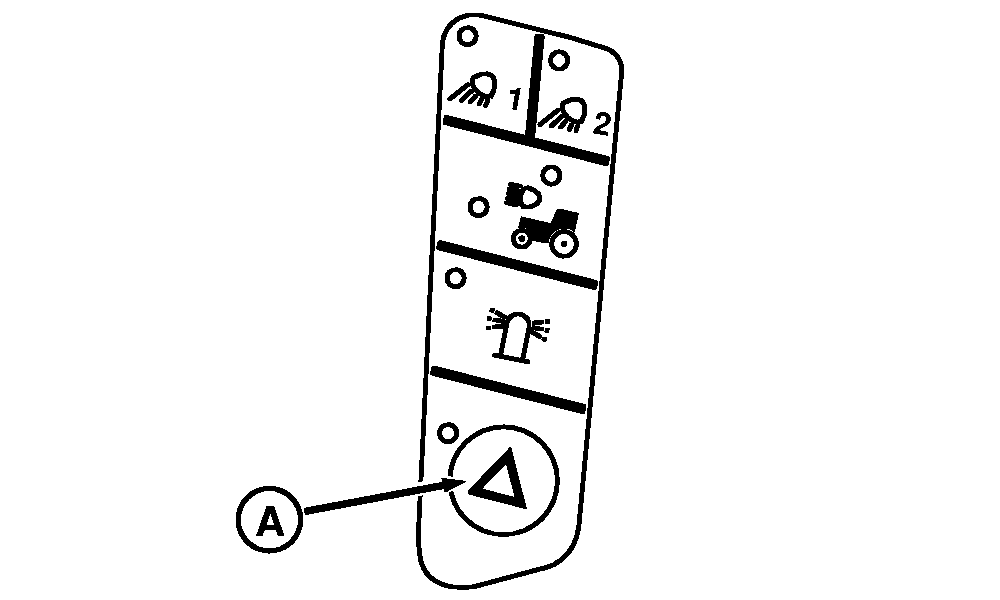

Hazard Light Button

A - Hazard Light Switch

CAUTION: To prevent possible personal injury, always operate flashing lights when traveling on a highway or public roads, except where prohibited by law.

Extremity Warning Lights are needed when tractor width exceeds 3.7 m (12 ft). Always use road lights and transport warning lights when operating tractor on a road or highway at night OR during the day. Extremity Transport Lights alert other vehicles of your extended width. Use flashing warning lights and turn signals day and night. Follow local regulations for equipment lighting and marking.

Push Hazard Switch (A) to activate flashing amber hazard lights.

Extremity Warning Lights operate with Hazard Light Switch ”ON”.
