Adjusting ComfortCommand™ Seat

RXA0099794-UN-16DEC08

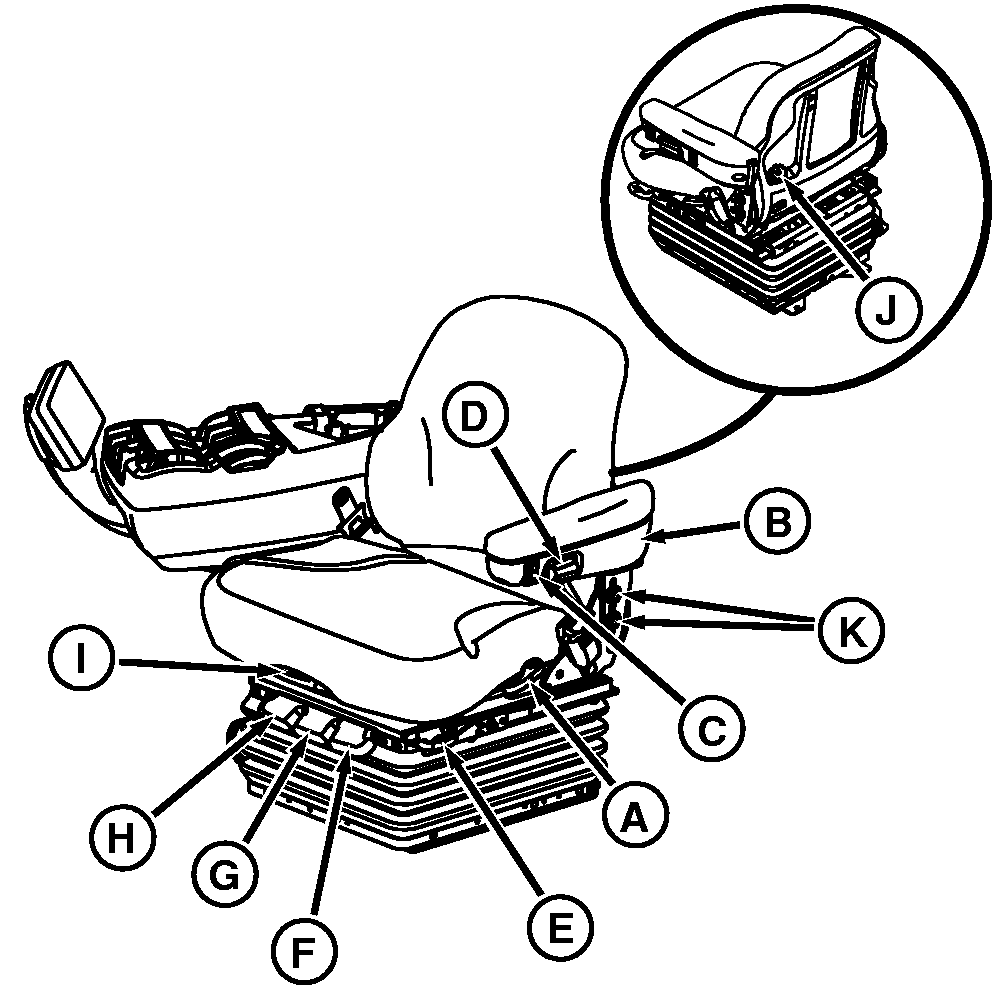

Seat With Fold-Down Armrest

A — Backrest Tilt Handle: Allows seat back to tilt.

B — Flip Up Armrest: Can be flipped up out of the way.

C — Height Adjustment Switch: Turn key to ”ON”. Press lower portion of switch to lower seat or press upper portion of switch to raise seat.

D — Armrest Tilt Adjustment Knob: Turn knob to adjust armrest angle.

E — Fore/Aft Seat Adjustment Handle: Allows entire seat assembly to move forward or backward.

F — Fore/Aft Isolation Handle: Push down on handle to allow operator seat to slide forward or backward. Pull up on handle to lock seat in place.

G — Lateral Isolation Handle: Push down on handle to unlock lateral seat suspension. Pull up on handle to lock seat in position.

H — Adjustment Damper Handle: Handle adjusts suspension shock. Moving handle to farthest down position provides the firmest ride; farthest up position provides softest ride.

I — Seat Swivel Handle: Lift on handle to allow seat to swivel. Push down on handle to lock seat in position.

J — Lumbar Adjustment Knob: Turn knob clockwise to add support to lower back. Turn counterclockwise to lessen resistance to lower back.

K — Back Rest Height Adjustment Screws: Loosen cap screws to slide seat back up or down. Retighten cap screws.
