Operating Front Windshield Wiper and Washer
RXA0098437-UN-22DEC08
RXA0113328-UN-27JAN11

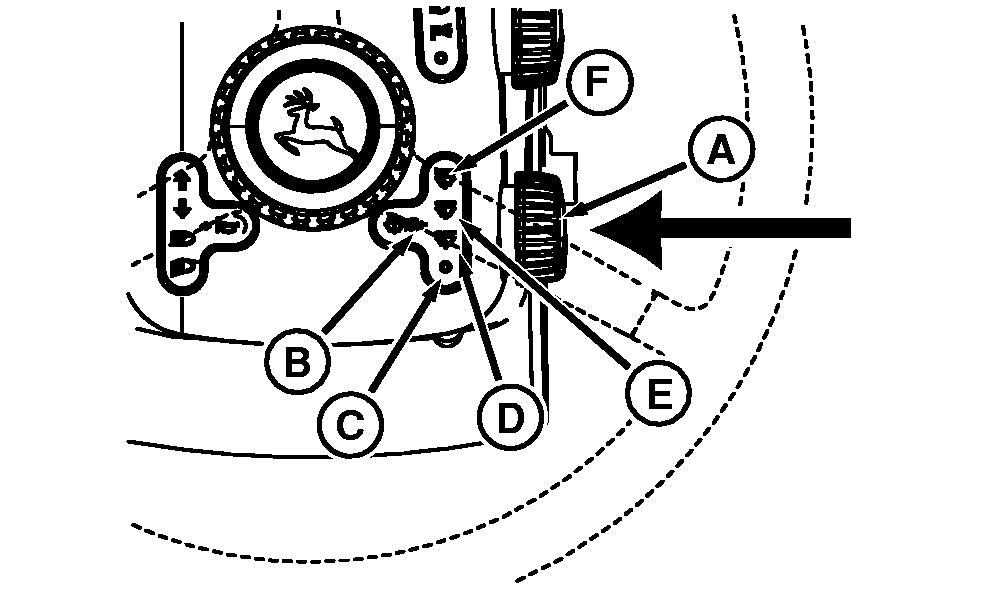

A - Windshield Wiper/Washer Knob
B - Washer Icon
C - Off
D - Intermittent Speed
E - Slow Speed
F - Fast Speed
G - Windshield Washer Reservoir
Wiper/washer knob (A) has four positions:- OFF
- Intermittent Operation
- Slow Speed
- Fast Speed
Push knob in to operate front windshield washer.

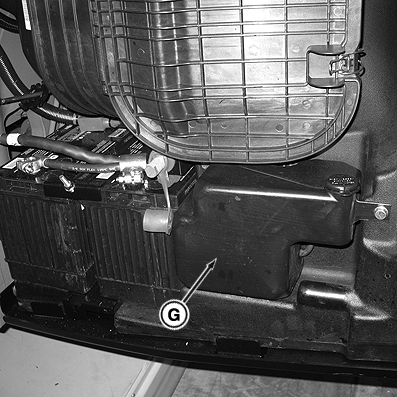

Fill reservoir with nonfreezing windshield washer fluid. Windshield washer reservoir (G) is behind battery compartment cover.
ZE59858,00003C7-19-20110207 |
